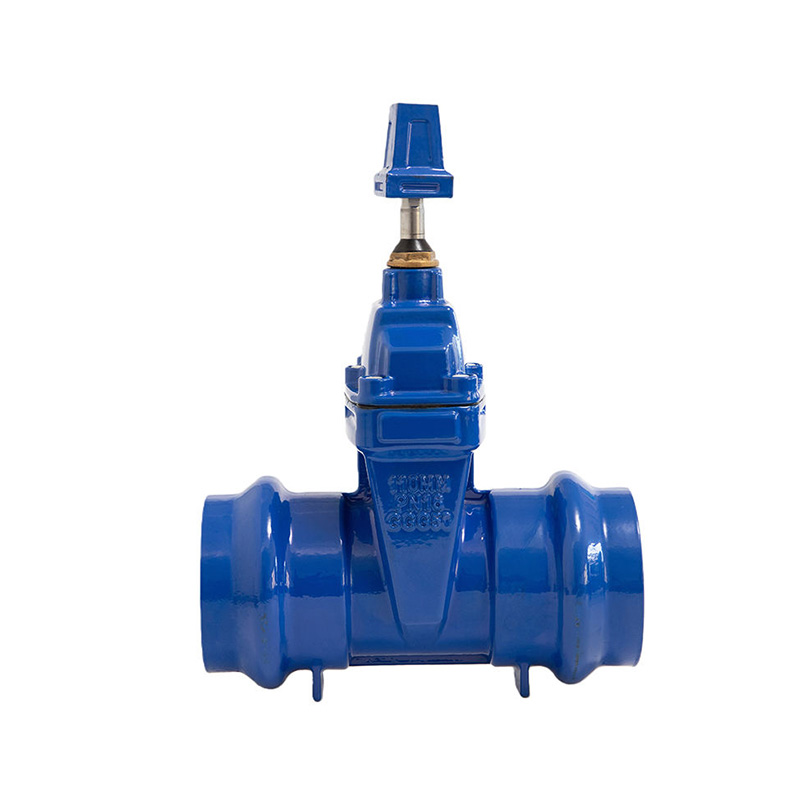

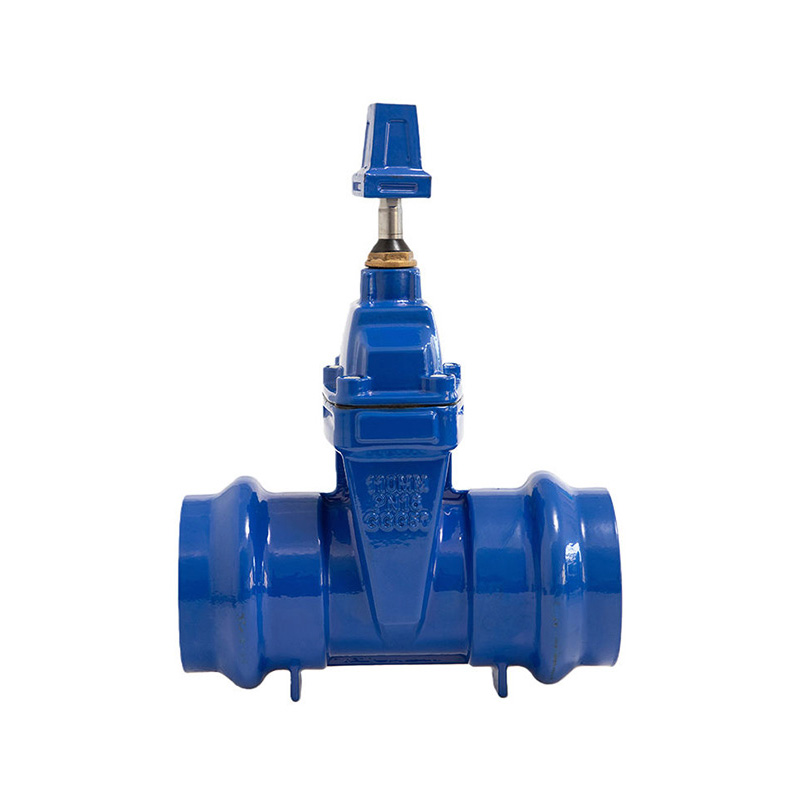

The Ductile Iron Socket End Gate Valve is designed for direct connection to ductile iron pipes or PVC pipes with rubber gasket joints. Unlike flanged valves that require nuts, bolts, and gaskets, this valve features integral sockets on both ends that accept plain-end pipes. The joint uses a factory-installed EPDM rubber gasket inside the socket — when the pipe is pushed in, the gasket compresses to form a pressure-tight seal. This significantly reduces installation time and labor costs, especially for large-diameter buried pipelines. The valve itself features a fully rubber-encapsulated gate that provides resilient seating for zero leakage.
Why Choose Us / Advantage
Compatible with Major Standards: ISO 2531, EN 545, and AWWA C111 joint dimensions.
Gasket Included: Each socket comes pre-loaded with EPDM gasket.
100% Leak Tested: Every valve undergoes shell and seat testing before packing.
Customizable: Available with restrained joint option for push-pull resistance.
Factory Direct Pricing: No middleman, competitive pricing for bulk orders.
Technical Data
★ Connection Type Socket End (Push-on)
★ Body Material Ductile Iron GJS-500-7 (QT500-7)
★ Joint Gasket EPDM rubber (WRAS approved)
★ Pressure Rating PN10 / PN16
★ Size Range DN80 – DN400
★ Gate Coating EPDM fully vulcanized
Applications
● Water supply pipelines (buried)
● Rural drinking water projects
● Firefighting loop lines
● Sewage collection networks
