Available in stainless steel/carbon steel, with high corrosion resistance and easy alignment
Compliant with ANSI/ASME B16.5, GB/T 9118, DIN standards
Loose design allows for free rotation and easy bolt hole alignment
Ideal for systems requiring frequent disassembly or high corrosion resistance
Full range of sizes and pressure ratings (DN15~DN600, Class150~1500).
100% dimensional inspection before shipment, with mill test certificates available

Premium stainless steel material, excellent corrosion resistance and long service life
Compliant with ANSI/ASME B16.5, GB, DIN standards
Smooth machined surface, precise bolt hole positioning for easy installation
Loose design allows free rotation for easy bolt hole alignment
Available in various sizes and pressure ratings to meet different application needs
100% dimensional and visual inspection before shipment, with mill test certificates provided

Carbon steel/stainless steel forged material, high strength and corrosion resistance
Raised face (RF) design with concentric grooves for leak-tight gasket sealing
Slip-on welding design for quick installation and easy alignment
Compliant with ANSI/ASME B16.5, GB, DIN, JIS international standards
Full range of sizes & pressure ratings (DN15~DN2000, Class150~1500)
100% dimensional & visual inspection, with mill test certificates available

Available in stainless steel / carbon steel, forged in one piece, with high strength, corrosion resistance and no sand holes or defects.
Compliant with ANSI/ASME B16.5, GB, DIN and other international standards, compatible with mainstream piping systems.
Full flat sealing structure for 100% pipe blockage and zero leakage guarantee.
Full range of specifications: pressure ratings Class150~2500, sizes DN15~DN2000 available.
Precision CNC machining ensures high end face flatness and accurate bolt hole positioning for easy installation.
100% visual and dimensional inspection before shipment; third-party testing supported with material certificates available.

Available in carbon steel/stainless steel, with high strength and corrosion resistance.
Compliant with ANSI/ASME B16.5, GB, DIN, JIS standards.
Slip-on welding design for easy alignment and quick installation.
Precision CNC machined bolt holes for leak-tight connection.
Full range of sizes and pressure ratings (DN15~DN2000, Class150~1500).
100% dimensional inspection before shipment, with mill test certificates available.

U‑shape open bolt slots – Bolt holes open to the outer edge; flange can be removed by loosening bolts without full bolt extraction
Fast maintenance – Drastically reduces downtime for cleaning, gasket replacement, or line access – improves plant efficiency
Ideal for confined spaces – Easy operation where bolts cannot be fully pulled out due to limited clearance
Multiple pressure ratings – Customizable from Class 150 to Class 900, suitable for medium and low pressure systems
Full material selection – Carbon steel, stainless steel, alloy steel, duplex, etc., for corrosive, sanitary, or high‑temperature services
Compatible with standard flanges – Bolt circle diameter and slot dimensions can match ASME/EN standard mating flanges and bolts

Socket weld design – Pipe end inserts into the socket, self‑aligning, simple and reliable welding
For high‑pressure duty – Pressure rating up to Class 2500, primarily for NPS 2″ and smaller lines
Smooth bore – Minimal internal weld protrusion reduces turbulence and pressure loss
Wide material choice – Carbon steel, stainless steel, alloy steel for corrosive, high‑temp or low‑temp services
Full standard compliance – Manufactured to ASME B16.11 / ASME B16.5 and GB/T 9116
Multiple facing types – RF, FF, RTJ, MFM, etc. for various gaskets

Weld‑free design – Internal threads (NPT / BSPT / BSPP) machined into the flange; directly screws onto threaded pipe – no welding equipment needed
Ideal for hazardous areas – Perfect for oil fields, chemical plants, gas lines where open flame or hot work is prohibited
Small‑bore, high‑pressure capability – Typically used for NPS 2" and below; pressure rating up to Class 1500
Easy disassembly – Threaded connection allows quick removal for system modification, maintenance or replacement
Full material selection – Carbon steel, stainless steel, alloy steel for corrosive, high‑temp or low‑temp services
Multiple facing types – RF, FF, RTJ, etc.; manufactured to ASME B16.5 / B16.47 or EN 1092‑1

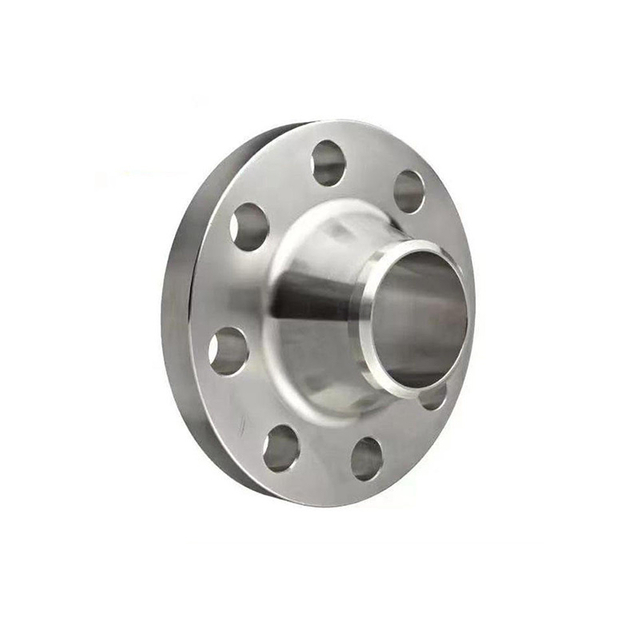

Long tapered hub – Hub thickness gradually transitions to pipe wall, significantly reducing stress concentration at the flange root
Butt weld connection – Flange welded to pipe with beveled ends; weld can be radiographed, strength equals that of base material
Excellent sealing performance – High rigidity, minimal flange rotation under bolting force, ideal for high pressure, high temperature and cyclic conditions
Full‑bore flow path – Flange bore matches pipe I.D. – no turbulence, no dead space, reduces pressure drop and erosion/corrosion
Wide pressure coverage – From Class 150 to Class 2500, sizes NPS 1/2″ up to 48″ and above
Full material & standard range – Carbon steel, stainless steel, alloy steel; ASME B16.5 / B16.47, EN 1092‑1, GB/T 9115, etc.
