45° Bend Angle: Gradual direction change — lower pressure drop than 90° elbows.
Long Radius (LR) or Short Radius (SR): LR (1.5D) standard; SR (1.0D) for tight spaces.
Seamless or Welded Construction: Seamless for high pressure; welded for large diameters.
ASTM A234 WPB / WPC: Standard carbon steel material for high temperature service.
Beveled Ends for Butt Weld: Prepares for easy field welding.
Full Traceability: Heat number stamped on each fitting.

Concentric Design: Symmetrical taper — pipe centerline remains straight.
Vertical Lines Only: Recommended for vertical pipelines or pump suction (flat top eccentric required for horizontal).
Seamless or Welded: Seamless up to 24″; welded for larger diameters.
ASTM A234 WPB: Standard carbon steel material.
Smooth Internal Transition: No sharp edges — minimizes turbulence.
Beveled Both Ends: Ready for butt welding to larger and smaller pipe.

Threaded Connection: NPT or BSP threads — screws into female threaded fitting.
Hex Head or Round Head: Hex for wrench tightening; round for low torque applications.
Solid Forged Construction: No porosity — stronger than cast plugs.
ASTM A105: Forged carbon steel for high pressure service.
NPT Threads Standard: Tapered threads provide pressure-tight seal with PTFE tape.
Low Cost: Economical way to close small threaded ports.

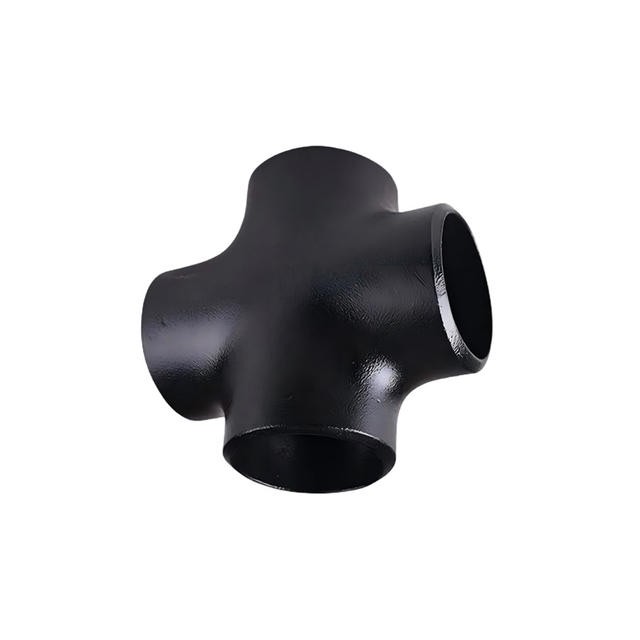

Four Openings: Two on run, two on opposite branches — all butt weld connections.
Equal Cross: All four ports same size (standard).
Reinforced Intersections: Extra wall thickness at all three branch intersections.
ASTM A234 WPB: Carbon steel for moderate temperature.
Seamless up to 12″: Larger sizes fabricated from welded pipe.
Saves Space: One cross replaces two tees and a spool piece

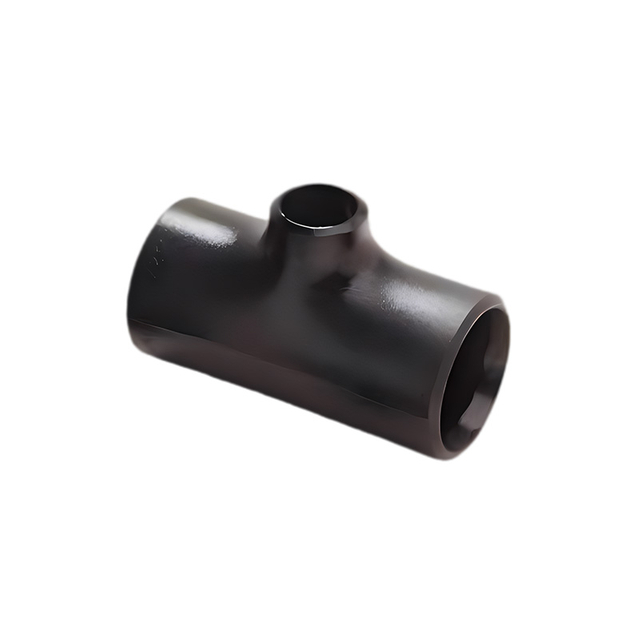

Reducing Tee: Branch opening is smaller than the main run.
One Fitting Replaces Tee + Reducer: Saves welding and space.
Butt Weld Connections: Beveled ends on all three ports.
Reinforced Branch: Extra thickness at the reducing intersection.
ASTM A234 WPB: Standard carbon steel.
Any Run/Branch Combination: Custom size reductions available.

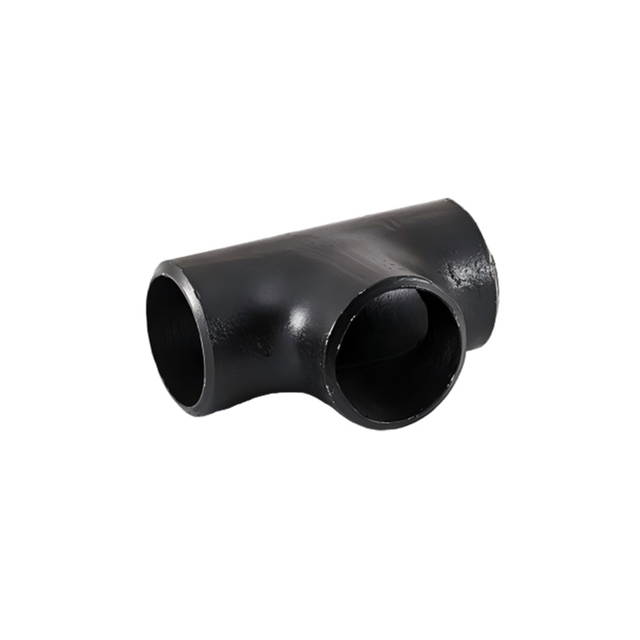

Equal Tee: All three openings are the same size.
Butt Weld Connections: Beveled ends for welding to main pipe and branch.
Reinforced Branch: Extra wall thickness at intersection for strength.
ASTM A234 WPB: Carbon steel for moderate temperature service.
Seamless up to 24″: One-piece construction for high integrity.
Full Pressure Rating: Branch rated same as run.

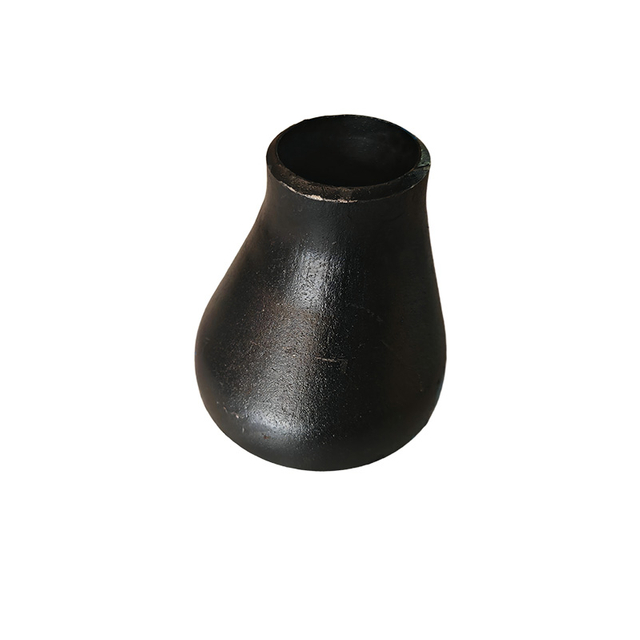

Eccentric Design: Offset taper — top flat or bottom flat installation.
Flat on Top (FOT): Prevents air pockets in horizontal liquid lines.
Flat on Bottom (FOB): Prevents sediment accumulation in horizontal solids lines.
Horizontal Liquid Lines: Standard for pump suction piping.
ASTM A234 WPB: Carbon steel for moderate temperature.
Beveled Both Ends: Ready for field butt welding.

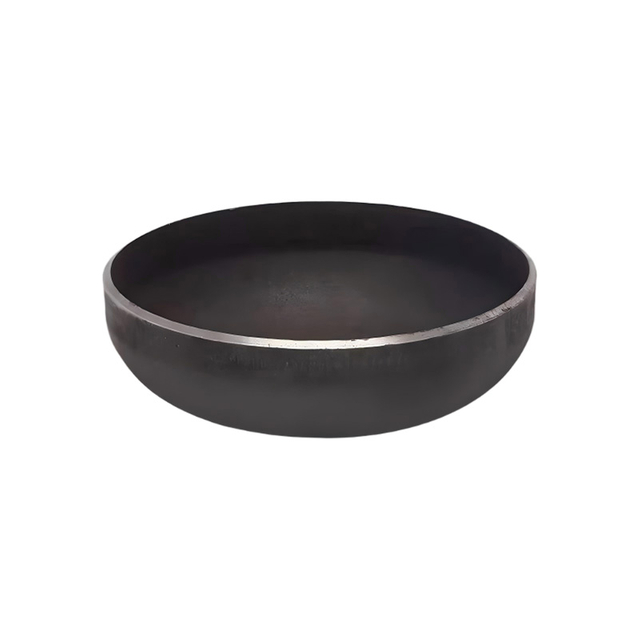

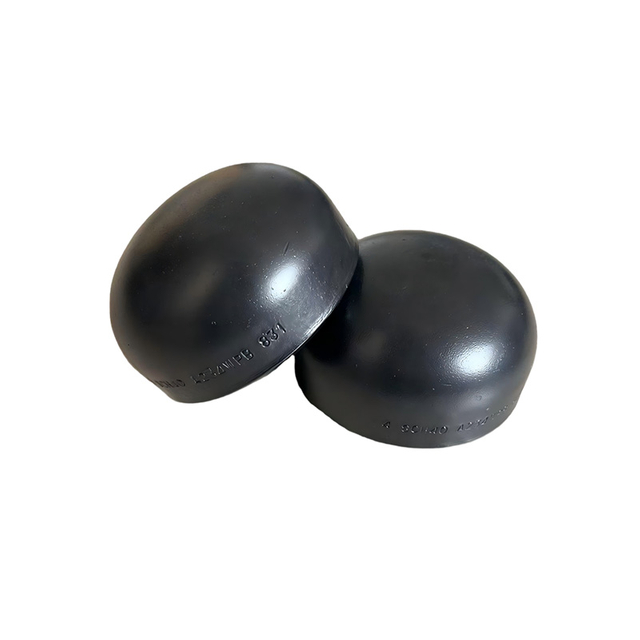

Pipe End Closure: Used to permanently seal the end of a pipe.
Elliptical or Hemispherical Shape: Elliptical standard; hemispherical for higher pressure.
Butt Weld Connection: Beveled end for direct welding to pipe.
ASTM A234 WPB: Standard carbon steel for moderate temperature service.
Hydrostatic Test Pressure Capable: Designed to full pipe pressure rating.
Traceable: Heat number stamped on each cap.

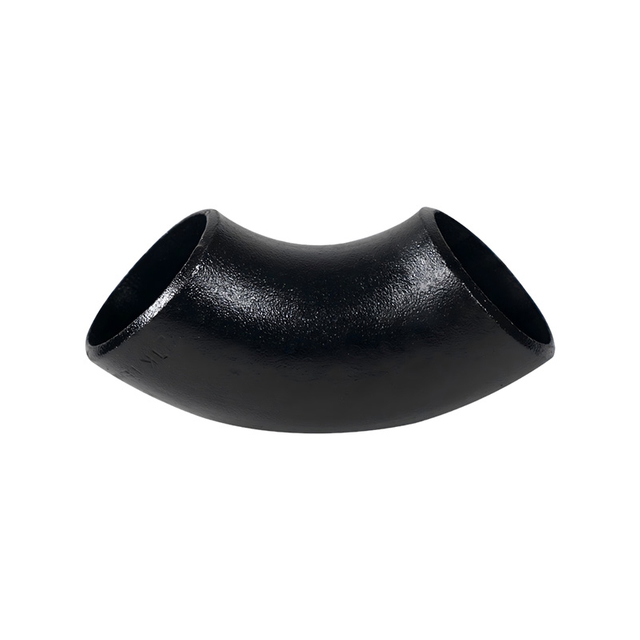

90° Bend Angle: Standard fitting for turning pipelines at right angles.
Long Radius (1.5D): Standard for most applications — lower pressure drop.
Short Radius (1.0D): Compact option for tight spaces (e.g., equipment nozzles).
Seamless up to 24″: One-piece construction for high integrity.
Beveled Ends: ASME B16.25 bevel for easy butt welding.
3D / 5D Bends Available: Long radius bending for large diameter pipelines.
