Lap Joint Stub End: Forms a flanged connection without welding to the flange.
Rotates Freely: The separate backing flange can rotate for easy bolt hole alignment.
SS304L / SS316L: Low carbon stainless steel for corrosion resistance.
No Flange-to-Pipe Weld: Stub end butt welds to pipe; flange is loose.
Easy Disassembly: Backing flange can be removed without cutting pipe.
Ideal for Sanitary & Corrosive Service: Smooth, crevice-free design.

Reducing Tee: Branch opening is smaller than main run — eliminates a separate reducer.
One Fitting, Two Functions: Tee connection + size reduction = fewer welds.
SS304L / SS316L: Low carbon grades for welded systems.
Reinforced Branch: Extra thickness at reducing intersection.
Smooth Flow Transition: Gradual reduction at branch — less turbulence.
Electropolish Option: For sanitary and pharmaceutical service.

Equal Tee: All three openings the same size — branch same as run.
Butt Weld Connections: Beveled ends for sanitary butt welding.
Reinforced Branch: Extra wall thickness at intersection for strength.
SS304L / SS316L: Low carbon grades for welded corrosive service.
Seamless up to 12″: One-piece construction — no weld seam to corrode.
Electropolished Interior Option: For pharmaceutical and food applications.

Eccentric Design: Offset taper — choose flat on top or flat on bottom.
Flat on Top (FOT): Prevents air pockets in horizontal liquid lines — critical for pump suction.
Flat on Bottom (FOB): Prevents sediment accumulation in horizontal slurry lines.
SS304L / SS316L: Low carbon grades for welded systems.
API 686 Compliant: Standard for pump suction piping in corrosive service.
Pickled & Passivated: Standard surface finish.

Concentric Design: Symmetrical taper — pipe centerline remains straight.
Vertical Lines Only: Recommended for vertical stainless steel piping.
SS304 / SS316L: Low carbon grades for weldability.
Seamless Construction: One-piece — no weld seam corrosion risk.
Smooth Internal Transition: No sharp steps — minimizes turbulence and bacteria traps.
Beveled Both Ends: Ready for butt welding to larger and smaller pipe.

45° Gradual Bend: Lower pressure drop than 90° elbows — ideal for high velocity corrosive media.
SS304 or SS316: CF8 or CF8M stainless steel — excellent corrosion resistance.
Long Radius (1.5D) Standard: Short radius (1.0D) available for tight spaces.
Seamless Construction: One-piece — no weld seam to corrode.
Beveled Ends: ASME B16.25 bevel for sanitary butt welding.
Electropolished Option: Smooth internal surface for pharmaceutical/food service.

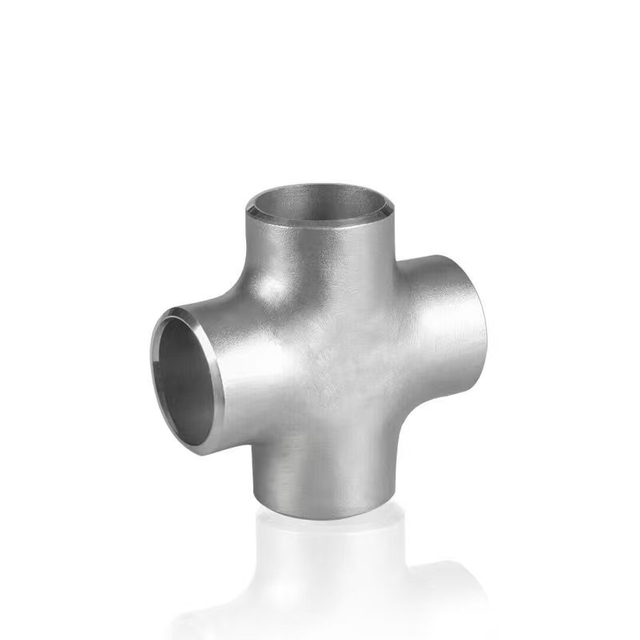

Four Openings: Two on run, two opposite branches — all butt weld connections.
Equal Cross: All four ports same size (standard).
Reinforced Intersections: Extra wall thickness at all three branch junctions.
SS316L Recommended: Best corrosion resistance for high stress cross fitting.
Seamless up to 8″: Larger sizes fabricated from welded pipe.
Space Saving: One cross replaces two tees and a spool.

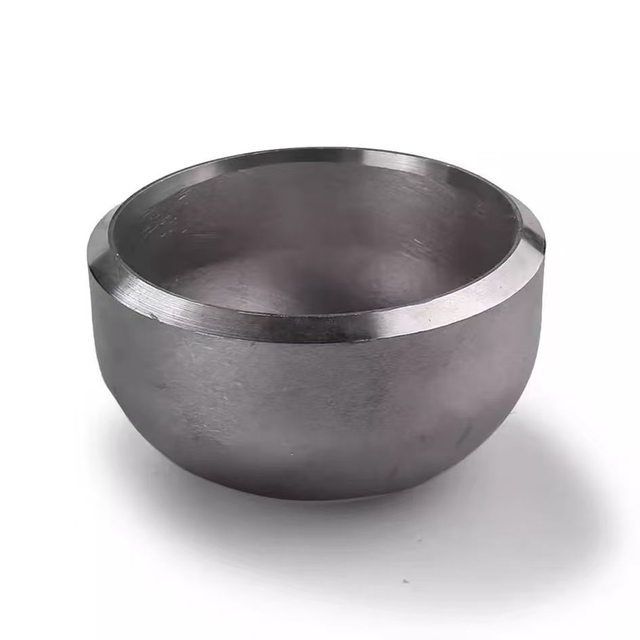

Permanent End Closure: Seals pipe ends in corrosive service lines.
Elliptical or Hemispherical Dome: Uniform stress distribution — stronger than flat caps.
SS304 / SS316L: Low carbon grades for welded systems.
Butt Weld Connection: Beveled end matches pipe bevel for full penetration weld.
Pickled & Passivated: Standard surface finish.
Vent Hole Option: 1/8″ or 1/4″ NPT vent for pressure testing.

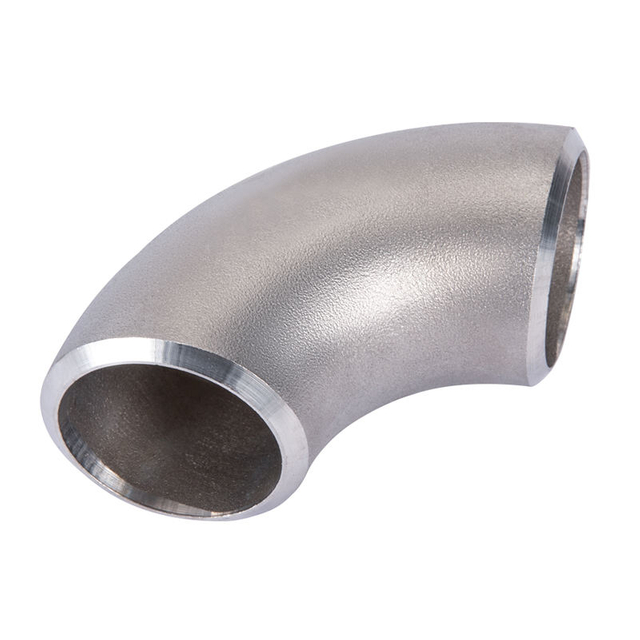

90° Standard Turn: Most commonly used fitting for pipeline direction change.
SS304 / SS316 / SS316L: Multiple material grades for different corrosion levels.
Long Radius (1.5D): Standard for most applications — piggable.
Short Radius (1.0D): Compact option for tight equipment nozzles.
Seamless up to 12″: Larger sizes fabricated from welded pipe.
Pickled & Passivated: Standard surface treatment removes weld scale and improves corrosion resistance.
