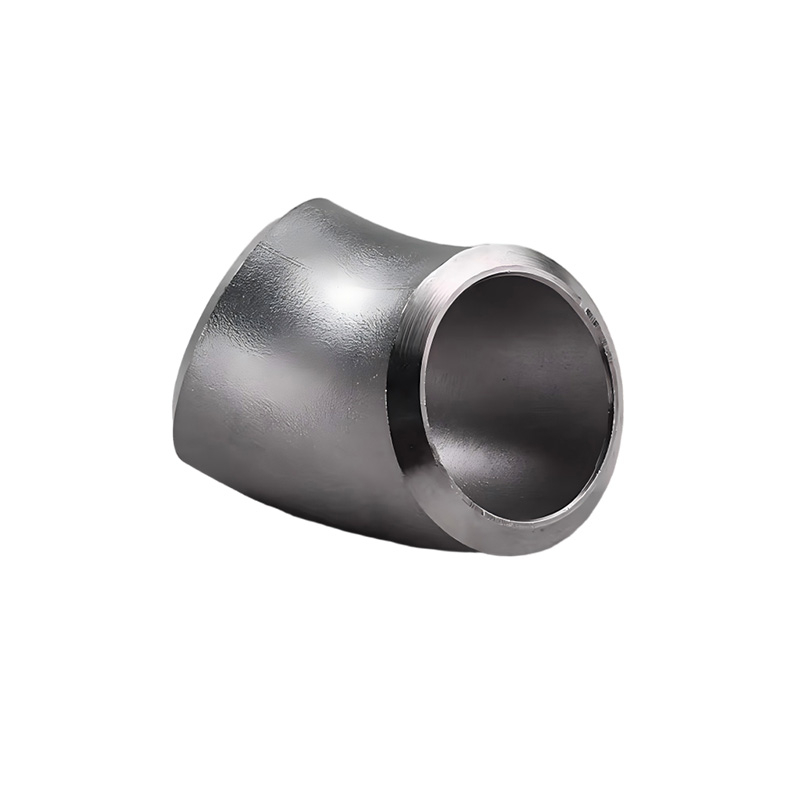

The Stainless Steel 45° Elbow is a butt weld pipe fitting used to change flow direction by 45 degrees in corrosive, sanitary, or high purity piping systems. The gradual 45° turn creates significantly lower pressure drop and less erosion compared to a 90° elbow — critical in high velocity acid or chemical lines. The fitting is manufactured from ASTM A403 stainless steel — WP304 (CF8) for general corrosive service or WP316 (CF8M) for higher corrosion resistance and chloride environments (seawater, acids). Long radius elbows (1.5D) are standard. Short radius (1.0D) is available for space-constrained installations. The ends are beveled per ASME B16.25. For pharmaceutical and food applications, an electropolished internal surface (Ra ≤ 0.4μm) is available to prevent bacterial adhesion.
Why Choose Us / Advantage
Material Certificates: EN 10204 3.1 with full chemical and mechanical analysis.
100% PMI Tested: Positive Material Identification on every fitting (standard).
Seamless Construction: No longitudinal weld seam — eliminates corrosion risk at weld.
Electropolishing Available: For sanitary/pharma applications (Ra 0.4μm).
Quick Lead Time: 1/2″ – 12″ sizes in 15-20 days.
Technical Data
★ Specification SS304 SS316
★ Material ASTM A403 WP304 ASTM A403 WP316
★ Angle 45° 45°
★ Radius Long radius (1.5D) / Short (1.0D) Long radius / Short
★ Connection Butt weld (beveled ends) Butt weld
★ Pressure Sch10S, Sch40S, Sch80S Sch10S, Sch40S, Sch80S
★ Size Range 1/2″ – 24″ (DN15 – DN600) 1/2″ – 24″
★ Standard ASME B16.9 ASME B16.9
★ Finish Mill finish / Pickled / Electropolished Mill finish / Pickled / Electropolished
Applications
● Chemical plant acid transfer lines (gradual turn reduces erosion)
● Pharmaceutical water for injection (WFI) distribution
● Food and dairy processing (sanitary elbows)
● Seawater cooling systems (SS316 recommended)
● Semiconductor ultrapure water piping
