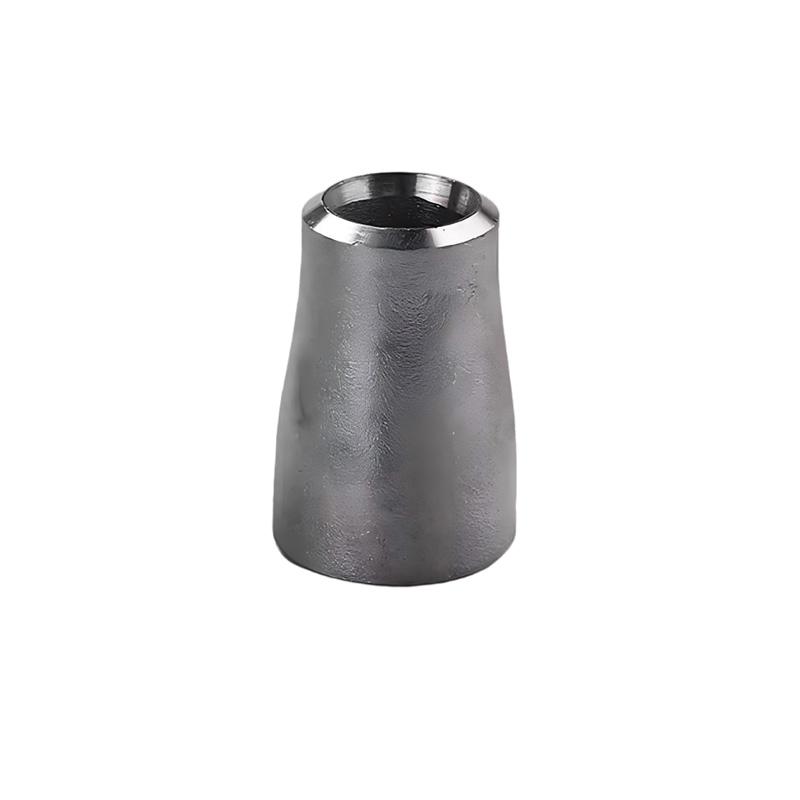

The Stainless Steel Concentric Reducer is a butt weld fitting used to transition between two different pipe sizes while maintaining a common centerline. The reducer has a symmetrical taper — the center of the larger pipe aligns perfectly with the center of the smaller pipe. This fitting is intended for vertical pipelines. (For horizontal liquid lines where air pockets must be avoided, an eccentric reducer with flat top is used instead.) The fitting is manufactured from ASTM A403 stainless steel — WP304/304L or WP316/316L. The internal surface is smooth with no abrupt steps, which is critical in sanitary and pharmaceutical applications where bacteria could otherwise accumulate in crevices. Both ends are beveled per ASME B16.25.
Why Choose Us / Advantage
Sanitary Internal Finish: Electropolish option eliminates crevices for bacteria growth.
Low Carbon Grades: 304L and 316L standard — no sensitization after welding.
100% PMI Tested: Material grade verified on every fitting.
Full Dimensional Traceability: Length and diameters checked to ASME B16.9.
Short Lead Time: Standard size reducers in 15 days.
Technical Data
★ Specification SS304/L SS316/L
★ Material ASTM A403 WP304/L ASTM A403 WP316/L
★ Type Concentric (symmetrical) Concentric
★ Connection Butt weld (beveled both ends) Butt weld
★ Schedule Sch10S, Sch40S, Sch80S Sch10S, Sch40S, Sch80S
★ Size Range 3/4″ x 1/2″ – 24″ x 20″ 3/4″ x 1/2″ – 24″ x 20″
★ Standard ASME B16.9 / MSS SP-43 ASME B16.9
★ Use Vertical lines Vertical lines
★ Finish Pickled & passivated / Electropolished Pickled & passivated / Electropolished
Applications
● Vertical pharmaceutical water risers (WFI)
● Chemical plant vertical process towers
● Stainless steel stack and exhaust systems
● Food processing vertical drops
● Clean-in-place (CIP) return vertical lines
