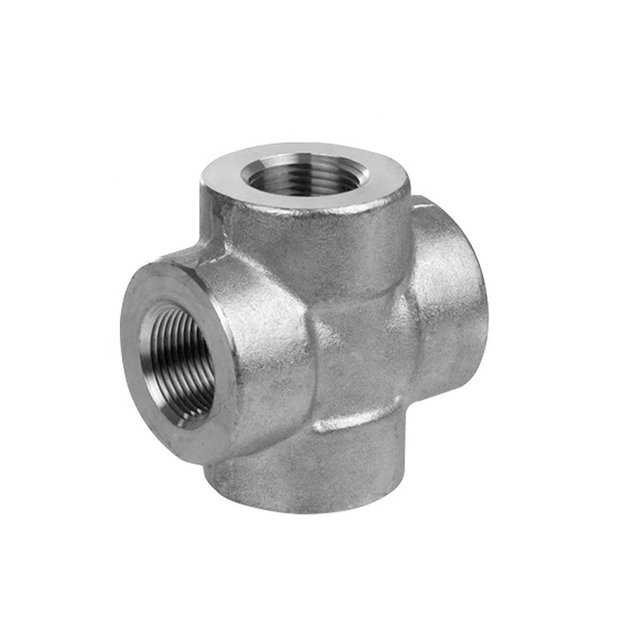

Four Female Threaded Ports: Inlet + outlet + two opposite branches.
Forged A105 Construction: High strength for manifold and header applications.
Class 3000 / 6000 Rated: Suitable for high pressure distribution.
Equal Cross (All Ports Same Size): Standard configuration.
Compact Design: Replaces multiple tees and fittings.
NPT or BSP Threads: Both standards available.

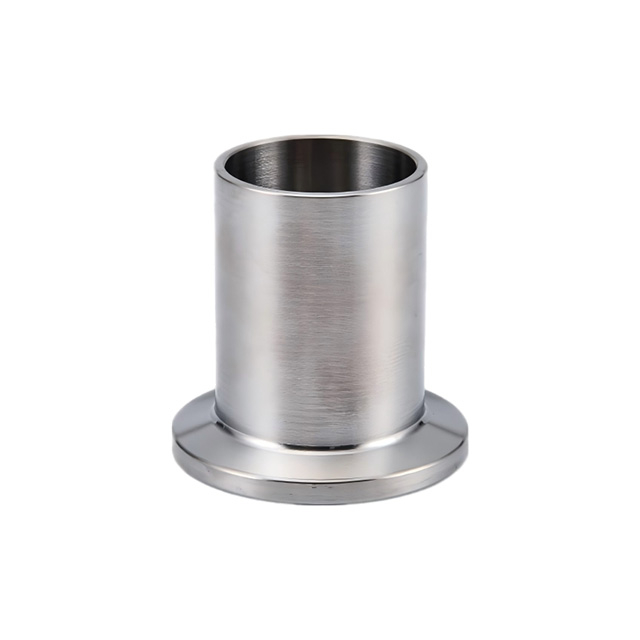

Lap Joint Stub End: Forms a flanged connection without welding to the flange.
Rotates Freely: The separate backing flange can rotate for easy bolt hole alignment.
SS304L / SS316L: Low carbon stainless steel for corrosion resistance.
No Flange-to-Pipe Weld: Stub end butt welds to pipe; flange is loose.
Easy Disassembly: Backing flange can be removed without cutting pipe.
Ideal for Sanitary & Corrosive Service: Smooth, crevice-free design.

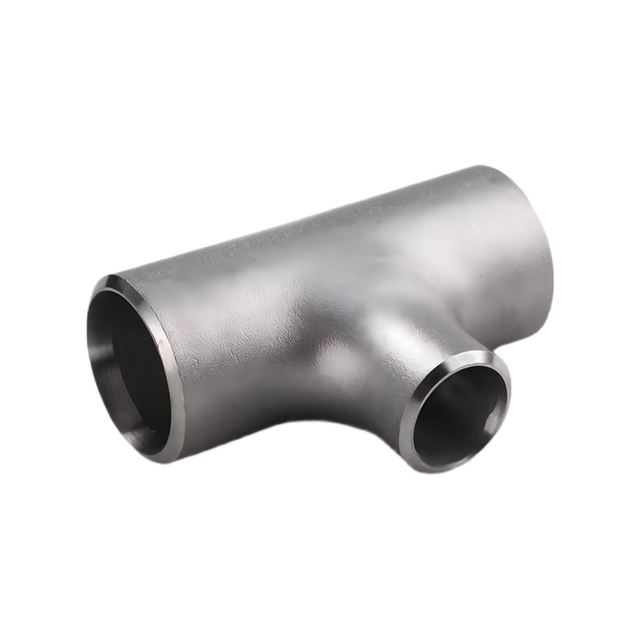

Reducing Tee: Branch opening is smaller than main run — eliminates a separate reducer.
One Fitting, Two Functions: Tee connection + size reduction = fewer welds.
SS304L / SS316L: Low carbon grades for welded systems.
Reinforced Branch: Extra thickness at reducing intersection.
Smooth Flow Transition: Gradual reduction at branch — less turbulence.
Electropolish Option: For sanitary and pharmaceutical service.

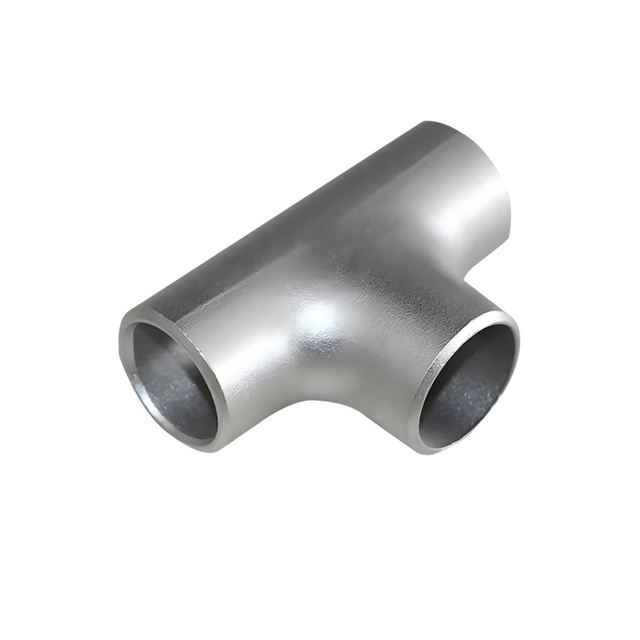

Equal Tee: All three openings the same size — branch same as run.
Butt Weld Connections: Beveled ends for sanitary butt welding.
Reinforced Branch: Extra wall thickness at intersection for strength.
SS304L / SS316L: Low carbon grades for welded corrosive service.
Seamless up to 12″: One-piece construction — no weld seam to corrode.
Electropolished Interior Option: For pharmaceutical and food applications.

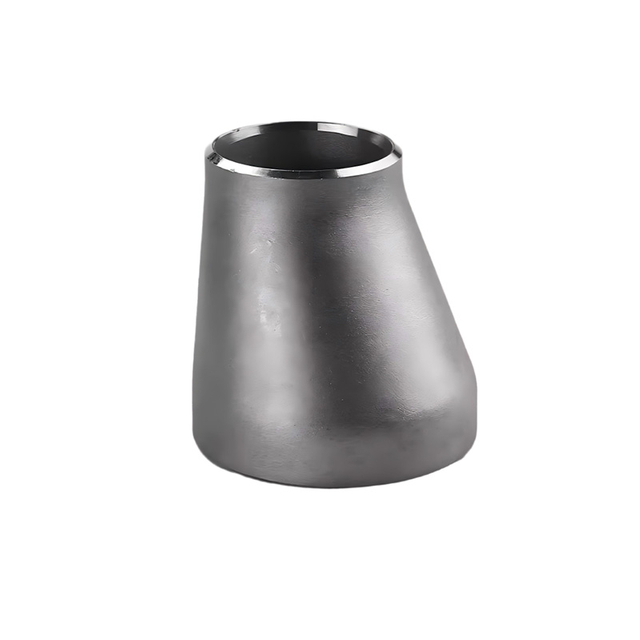

Eccentric Design: Offset taper — choose flat on top or flat on bottom.
Flat on Top (FOT): Prevents air pockets in horizontal liquid lines — critical for pump suction.
Flat on Bottom (FOB): Prevents sediment accumulation in horizontal slurry lines.
SS304L / SS316L: Low carbon grades for welded systems.
API 686 Compliant: Standard for pump suction piping in corrosive service.
Pickled & Passivated: Standard surface finish.

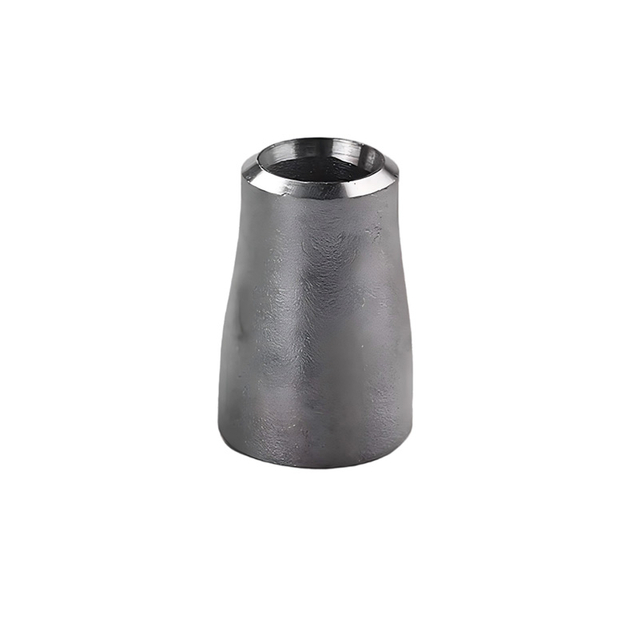

Concentric Design: Symmetrical taper — pipe centerline remains straight.
Vertical Lines Only: Recommended for vertical stainless steel piping.
SS304 / SS316L: Low carbon grades for weldability.
Seamless Construction: One-piece — no weld seam corrosion risk.
Smooth Internal Transition: No sharp steps — minimizes turbulence and bacteria traps.
Beveled Both Ends: Ready for butt welding to larger and smaller pipe.

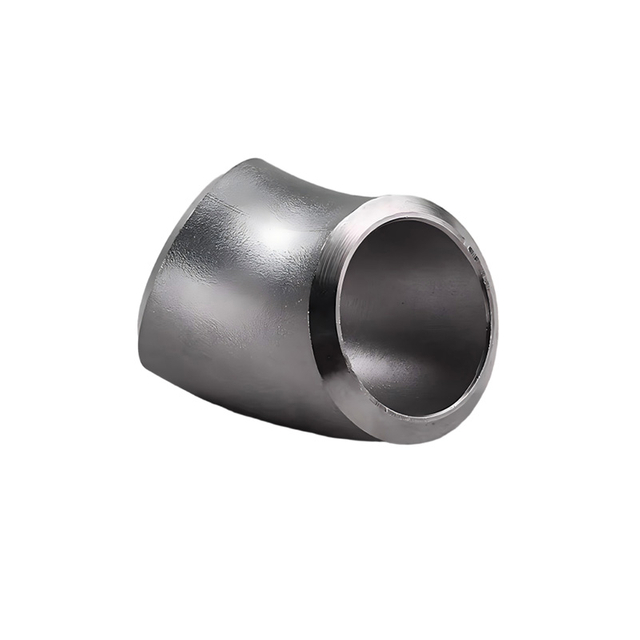

45° Gradual Bend: Lower pressure drop than 90° elbows — ideal for high velocity corrosive media.
SS304 or SS316: CF8 or CF8M stainless steel — excellent corrosion resistance.
Long Radius (1.5D) Standard: Short radius (1.0D) available for tight spaces.
Seamless Construction: One-piece — no weld seam to corrode.
Beveled Ends: ASME B16.25 bevel for sanitary butt welding.
Electropolished Option: Smooth internal surface for pharmaceutical/food service.

45° Bend Angle: Gradual direction change — lower pressure drop than 90° elbows.
Long Radius (LR) or Short Radius (SR): LR (1.5D) standard; SR (1.0D) for tight spaces.
Seamless or Welded Construction: Seamless for high pressure; welded for large diameters.
ASTM A234 WPB / WPC: Standard carbon steel material for high temperature service.
Beveled Ends for Butt Weld: Prepares for easy field welding.
Full Traceability: Heat number stamped on each fitting.

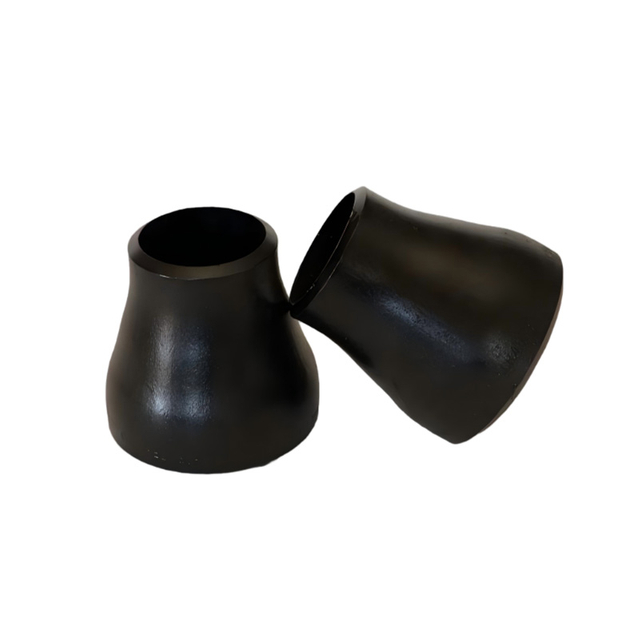

Concentric Design: Symmetrical taper — pipe centerline remains straight.
Vertical Lines Only: Recommended for vertical pipelines or pump suction (flat top eccentric required for horizontal).
Seamless or Welded: Seamless up to 24″; welded for larger diameters.
ASTM A234 WPB: Standard carbon steel material.
Smooth Internal Transition: No sharp edges — minimizes turbulence.
Beveled Both Ends: Ready for butt welding to larger and smaller pipe.
