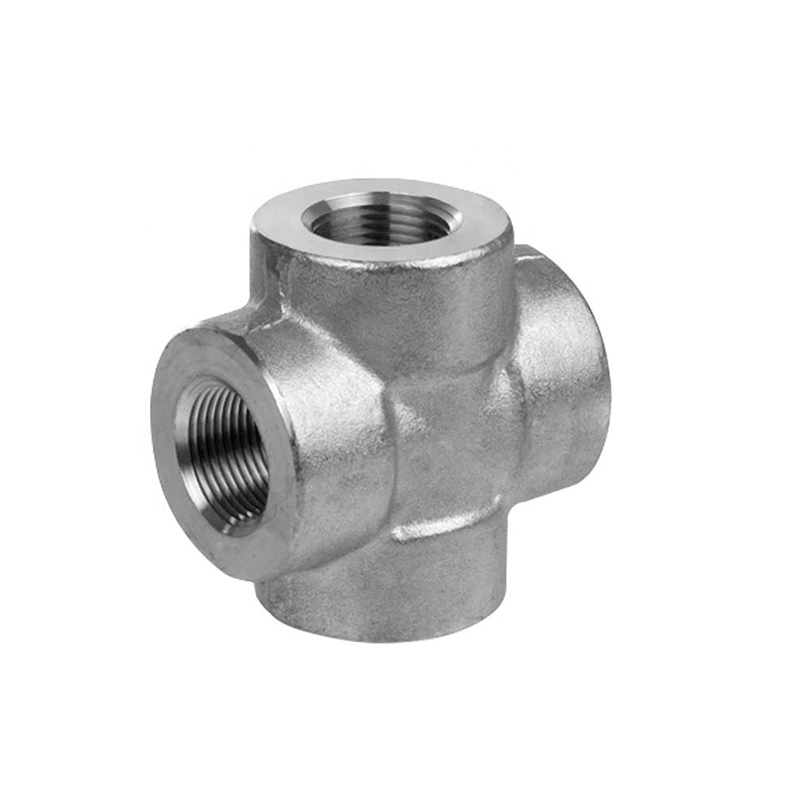

The Forged Carbon Steel Threaded Cross (4-way cross) is a high pressure fitting with four female threaded ports — one inlet, one outlet (straight through), and two opposite branch outlets at 90° to the run. This fitting is used to distribute flow from a single source to three downstream lines (or combine three lines into one). The fitting is forged from ASTM A105 carbon steel, providing high strength and reliable pressure containment. All four ports are identical size (equal cross). The cross is commonly used in instrument manifolds, hydraulic distribution blocks, and steam distribution headers. The compact design replaces multiple tees and pipe spools, saving space and reducing potential leak points. Threads are NPT (National Pipe Taper) or BSP (British Standard Pipe).
Why Choose Us / Advantage
Space Saving: One cross instead of two tees + pipe spool.
Forged Strength: No porosity — reliable at full pressure rating.
All Ports Equal: Symmetrical design for balanced flow.
Full Traceability: Heat number on request.
Quick Lead Time: 1/8″ – 2″ available from stock.
Technical Data
★ Specification Class 3000 Class 6000
★ Material Forged Steel ASTM A105 Forged Steel ASTM A105
★ Type Equal Cross (4 ports same size) Equal Cross
★ Connection Female NPT / BSP all ports Female NPT / BSP
★ Pressure 3000 PSI 6000 PSI
★ Size Range 1/8″ – 2″ 1/8″ – 1″
★ Standard ASME B16.11 ASME B16.11
★ Port Configuration 180° run + 90° branches 180° run + 90° branches
Applications
● Hydraulic manifold blocks (supply to multiple actuators)
● Instrument air distribution to multiple devices
● Chemical injection distribution headers
● Steam supply to multiple tracing lines
● Test stand pressure distribution
