Forged Carbon Steel Hex Plug (Solid Plug) | High Pressure Threaded End Closure

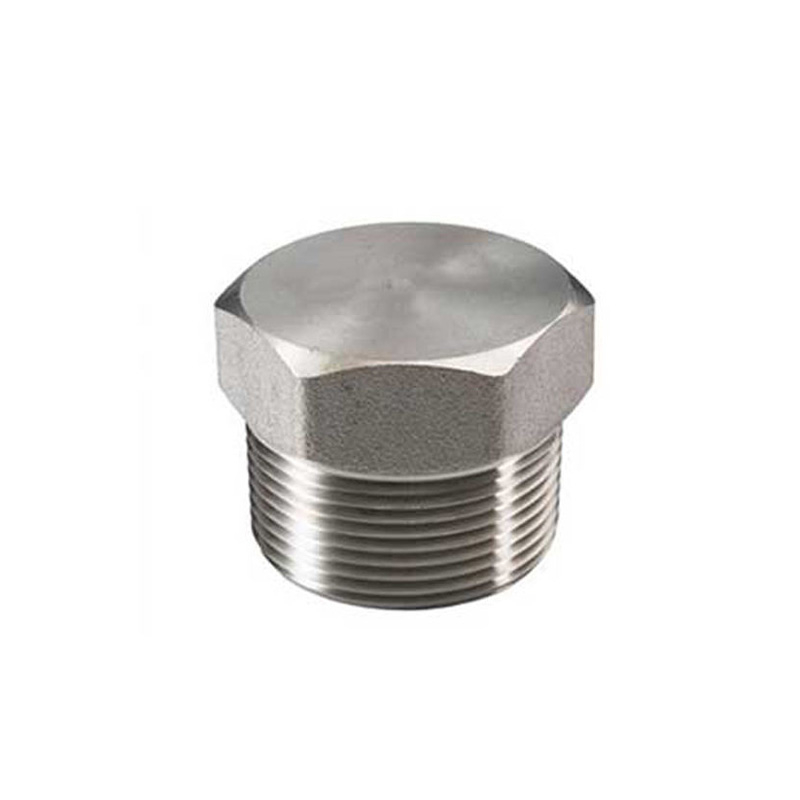

The Forged Carbon Steel Hex Plug (also called a solid plug or pipe plug) is a male threaded fitting used to seal a female threaded port. The plug is forged from ASTM A105 carbon steel and has a hex head for wrench tightening. The threads are tapered NPT or BSP — as the plug is tightened, the threads wedge together, creating a pressure-tight seal (supplemented with PTFE tape or pipe dope). Hex plugs are used to close unused ports on valves, manifolds, pumps, and equipment. Unlike welded caps, hex plugs can be removed for future use. Class 3000 and Class 6000 ratings are available for high pressure service. For lower pressure applications, Class 2000 plugs are also available.

Why Choose Us / Advantage

Hex Head Standard: Easy installation and removal.

Full Thread Length: Threads to full depth for maximum engagement.

Class 6000 Available: For the most demanding high pressure systems.

Zinc Plated: Standard corrosion protection.

Stocked Sizes: 1/8″ to 2″ available for immediate shipment.

Technical Data

★ Specification Class 3000 Class 6000

★ Material Forged Steel ASTM A105 Forged Steel ASTM A105

★ Type Hex head solid plug Hex head solid plug

★ Connection Male NPT / BSP Male NPT / BSP

★ Pressure 3000 PSI 6000 PSI

★ Size Range 1/8″ – 2″ 1/8″ – 1-1/2″

★ Standard ASME B16.11 ASME B16.11

★ Finish Zinc plated / Black Zinc plated / Black

Applications

● Sealing unused ports on hydraulic manifolds

● Closing test ports after hydrostatic testing

● Plugging drain ports during system operation

● Instrument manifold closure

● Pipe end sealing (threaded pipe ends)
