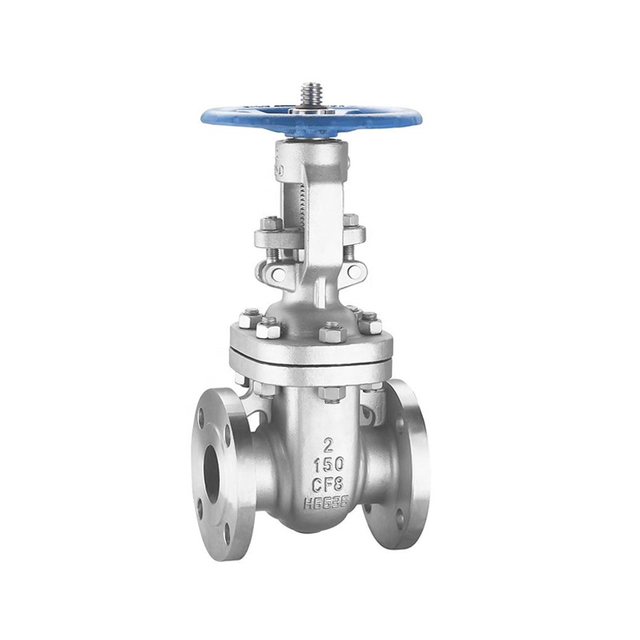

Stainless Steel Body: CF8 (SS304) or CF8M (SS316) castings — excellent corrosion resistance.
OS&Y Rising Stem Design: Visual position indication and stem threads outside the media.
Solid Wedge or Flexible Wedge: Choose based on service conditions.
Bolted Bonnet: Easy maintenance without special tools.
Full Port Design: No pressure drop when fully open.
Class 150 / 300: Available in both pressure ratings.

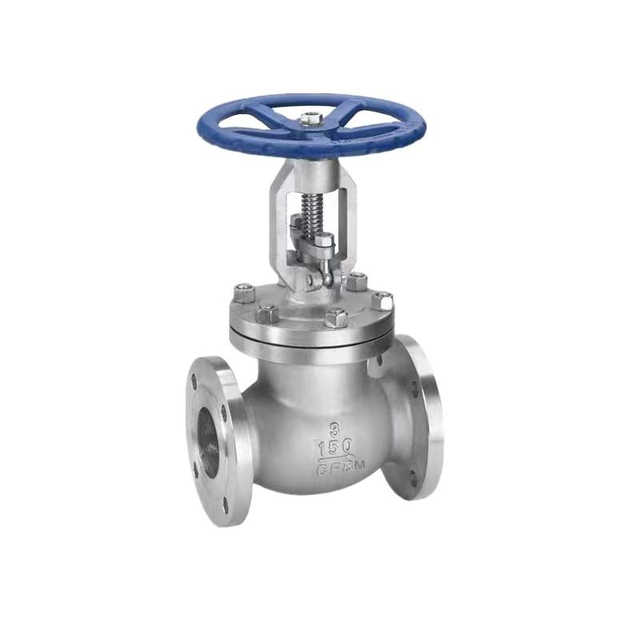

Globe Pattern Body: Excellent flow regulation and throttling capability.
CF8 / CF8M Castings: SS304 or SS316 for corrosion resistance.
Renewable Seat & Disc: Both can be replaced without replacing the valve body.
Bolted Bonnet with Backseat: Allows repacking under full pressure.
Class 150 / 300: Available in both pressure classes.
PTFE or Graphite Packing: Choose based on temperature and media.

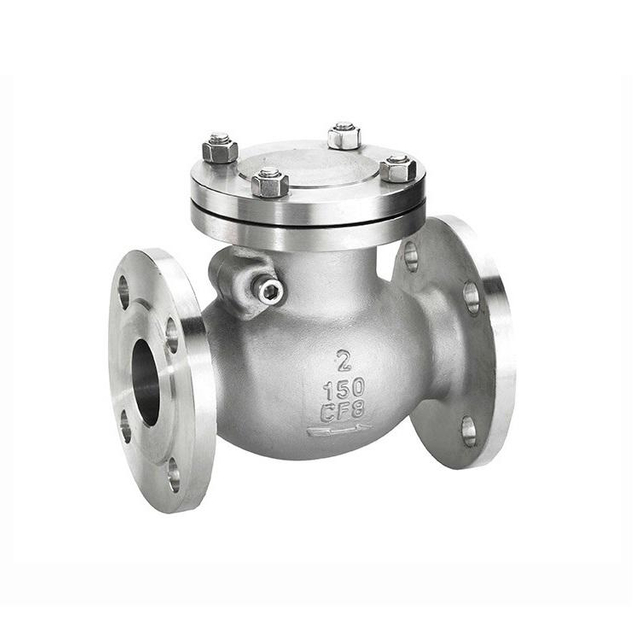

Swing Disc Design: Disc swings fully open — minimal pressure drop.
CF8 / CF8M Stainless Steel: Excellent corrosion resistance for acids and chemicals.
Renewable Seat Ring: Seat can be replaced in the field.
Lever & Weight Option: For water hammer sensitive applications.
Horizontal or Vertical (Upward Flow): Flexible installation orientation.
Class 150 / Class 300: Available in both pressure ratings.

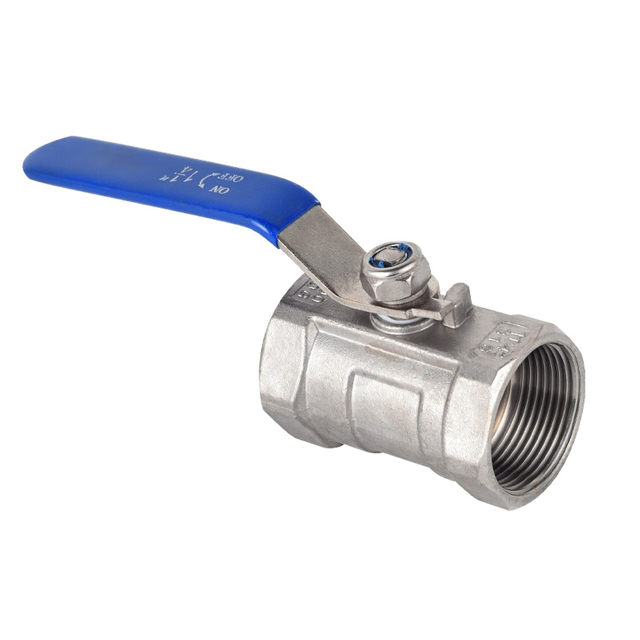

One-Piece Body Design: Single body block with integral ends — most economical stainless ball valve.
Threaded Connections: NPT or BSP for quick installation on 1/4″ to 2″ pipes.
Full Port or Reduced Port: Full port for minimal pressure drop.
Blow-Out Proof Stem: Stem cannot be ejected under line pressure.
PTFE Seats & Seals: Low friction, chemical resistant, wide temperature range.
Compact Size: Short face-to-face dimension — fits where space is limited.

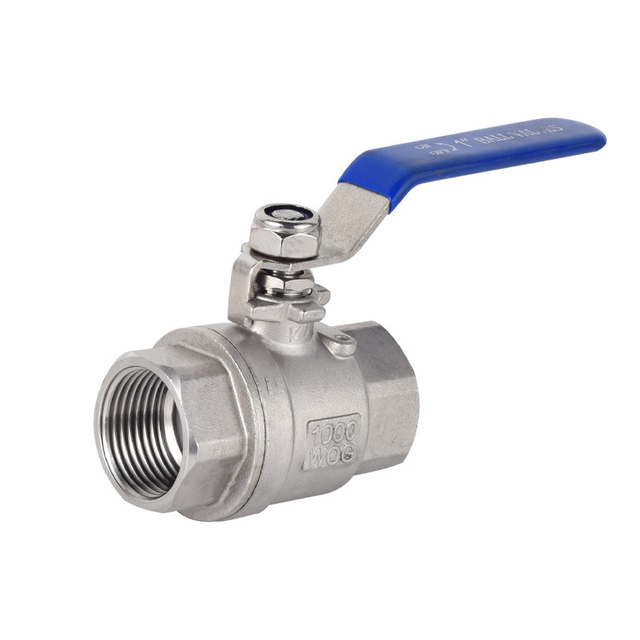

Two-Piece Body: Center body joint allows access to internals for maintenance.
Serviceable Design: Seats and ball can be replaced without removing threaded ends from pipe.
Full Port Standard: Minimal pressure drop — bore matches pipe ID.
PTFE Seats with VITON / FKM Seals: High temperature chemical resistance.
Blow-Out Proof Stem & Anti-Static Device: Safety features standard.
ISO 5211 Direct Mount Pad: Ready for actuator (available on request).

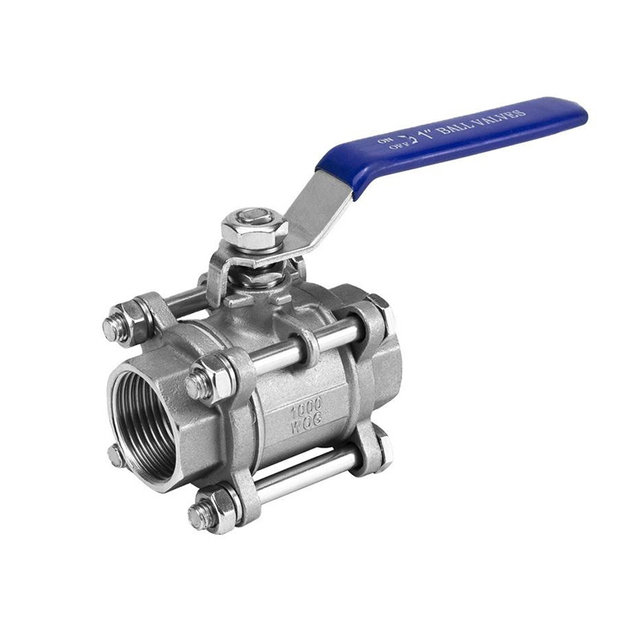

Three-Piece Body: Center body separates completely from end connections — easiest to maintain.
End Connections Remain on Pipe: Remove center body without unthreading valve from pipeline.
Full Port Standard: No flow restriction — bore matches pipe ID exactly.
PTFE / PEEK / RTFE Seats: Choose seat material for high temperature or abrasive media.
Sanitary Polish Option: Internal surfaces polished for food/pharma service.
Lockable Handle & ISO 5211 Pad: Safety and automation ready.

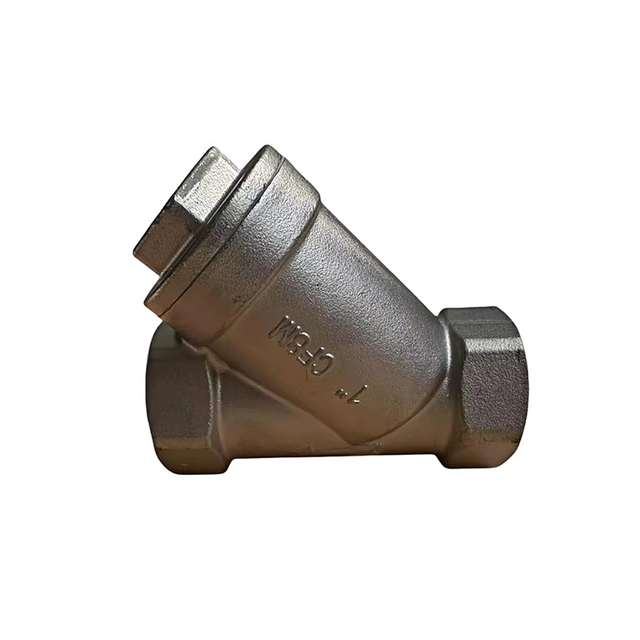

Stainless Steel Body: CF8 (SS304) or CF8M (SS316) — will not rust or contaminate media.
Threaded Connections: NPT or BSP threads for easy installation on small pipes (1/4″ – 2″).
Removable Stainless Steel Screen: SS304 or SS316 mesh — cleanable and reusable.
Blow-Down Port Option: Purge debris without disassembling the strainer.
Multiple Mesh Sizes: 20, 40, 60, 80, 100, or 200 mesh available.
Compact Y-Shape Design: Easy access to screen without removing the strainer from the line.

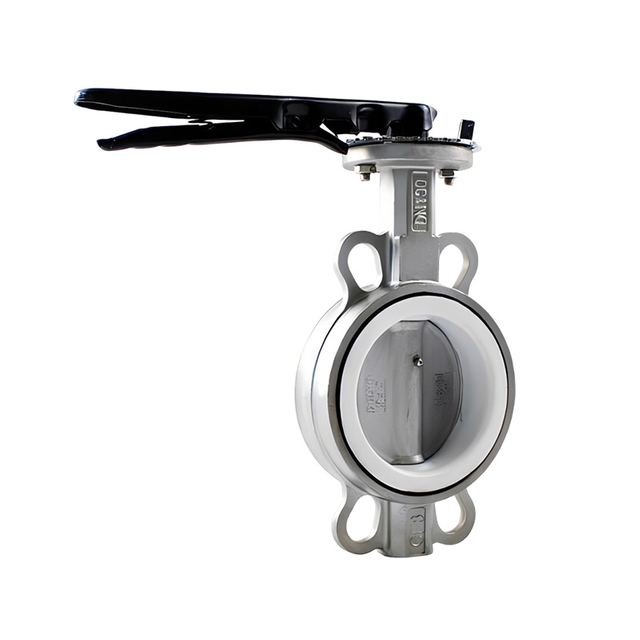

Wafer Design: Sandwich installation between two flanges — lightweight and compact.
SS316 Disc Standard: Corrosion resistant disc — perfect for aggressive media.
EPDM / PTFE / Viton Lining: Choose seat material based on chemical compatibility.
90° Quarter-Turn Operation: Fast opening and closing with lever or gearbox.
ISO 5211 Mounting Pad: Ready for electric or pneumatic actuators.
Bi-Directional Sealing: Zero leakage in both flow directions.
