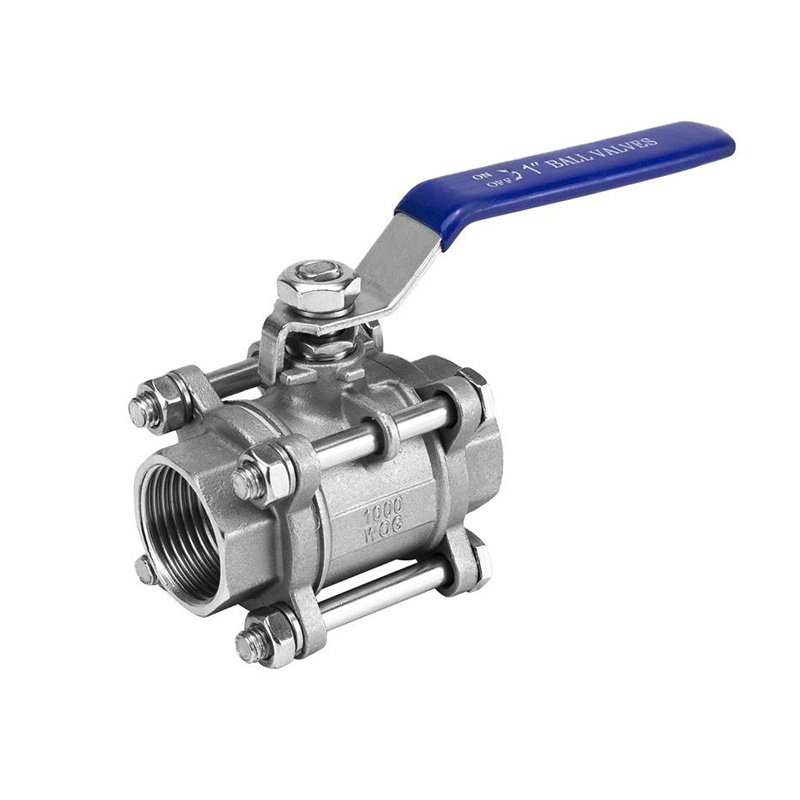

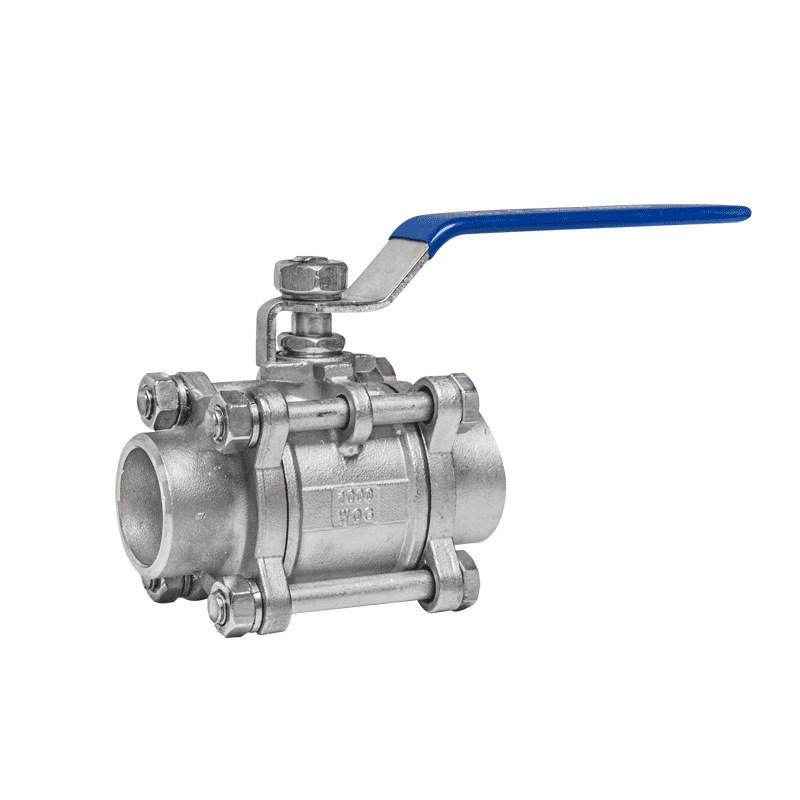

The Stainless Steel Three-Piece Ball Valve is the most maintainable stainless steel threaded ball valve design. The valve consists of three components: two end pieces (with threads) and a center body that houses the ball and seats. The end pieces bolt to the center body. To service the valve, the technician simply unbolts the center body from both ends and removes it — the threaded ends remain connected to the pipeline. This allows the valve to be serviced, cleaned, or have its seats replaced without disturbing the pipe connections. The three-piece design is standard in sanitary applications (food, dairy, pharmaceutical) because the center body can be removed for thorough cleaning or autoclaving. The floating ball, PTFE seats, and blow-out proof stem provide bubble-tight sealing.
Why Choose Us / Advantage
Quick Maintenance: Replace seats in 5 minutes without pipe disassembly — reduce downtime.
Sanitary/Clean Service: Center body can be removed and autoclaved — perfect for sterile applications.
Seat Material Upgrade: RTFE (reinforced) for higher pressure; PEEK for high temp (250°C+).
316 Stainless Standard: All wetted parts SS316 — no risk of corrosion.
Passivated Finish: All valves are acid passivated after machining for maximum corrosion resistance.
Technical Data
★ Specification Standard Sanitary / Pharma
★ Body Material SS316 (CF8M) SS316L
★ Ball Material SS316 (mirror polished) SS316L (electropolished)
★ Seat Material PTFE RTFE / PEEK
★ Surface Finish As-cast Ra 0.4μm polished
★ Pressure 1000 PSI / PN40 1000 PSI
★ Size Range DN6 – DN100 (1/4″ – 4″) DN6 – DN50
★ Port Full Port Full Port
★ Connection Threaded NPT / BSP Clamp end also available
Applications
● Pharmaceutical water for injection (WFI) systems
● Food and dairy processing (requires frequent cleaning)
● Biotechnology sterile fluid handling
● High purity chemical manufacturing
● Cosmetic and personal care product lines
