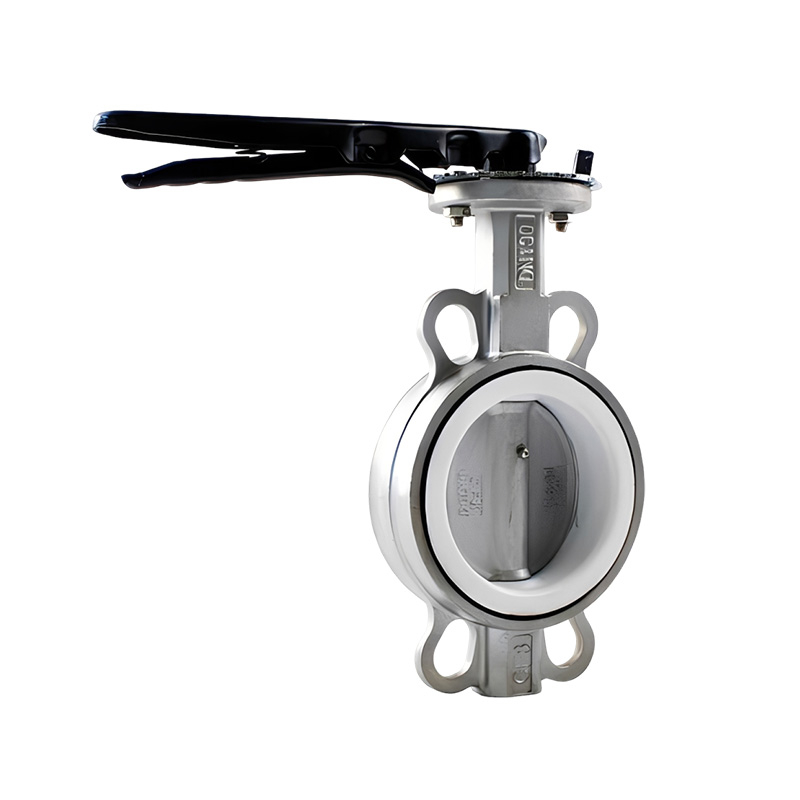

The Stainless Steel Wafer Butterfly Valve features a stainless steel disc (SS304 or SS316) inside a body that is lined with a soft elastomer or PTFE seat. The valve body itself can be either stainless steel or ductile iron with a stainless steel disc — we offer both configurations depending on your budget and corrosion requirements. The wafer design allows the valve to be clamped between two pipeline flanges (PN10/16, Class 150, or JIS 10K) using through-bolts. A 90° rotation of the handle or gearbox moves the disc from fully closed (0°) to fully open (90°). This valve is ideal for corrosive media such as acids, alkalis, seawater, and chemical process fluids. The PTFE-lined version is specifically designed for highly aggressive chemicals where rubber would be attacked.
Why Choose Us / Advantage
Full Stainless Option: SS316 body + SS316 disc + PTFE seat — maximum corrosion resistance.
Actuator Ready: ISO 5211 top flange with square drive — accepts any actuator brand.
Seat Material Choice: EPDM (water), NBR (oil), Viton (chemicals), PTFE (acids/solvents).
Face to Face per ISO 5752: Interchangeable with major brands.
100% Seat Tested: Bubble-tight shut-off at rated pressure.
Technical Data
★ Specification Standard Full SS Option
★ Body Material Ductile Iron + Coating SS316 Stainless Steel
★ Disc Material SS304 / SS316 SS316
★ Seat Material EPDM / NBR / Viton / PTFE PTFE
★ Pressure PN10 / PN16 / Class 150 PN10 / PN16
★ Size Range DN40 – DN600 DN40 – DN300
★ Operation Lever (≤DN200) / Gear (≥DN250) Lever / Gear
★ Connection Wafer Wafer
Applications
● Chemical plant acid and caustic transfer lines
● Seawater cooling systems on ships and offshore platforms
● Pharmaceutical CIP return lines (PTFE lined)
● Food processing (fruit juice, beer, dairy) with EPDM seat
● Swimming pool and water treatment chemical feed lines
