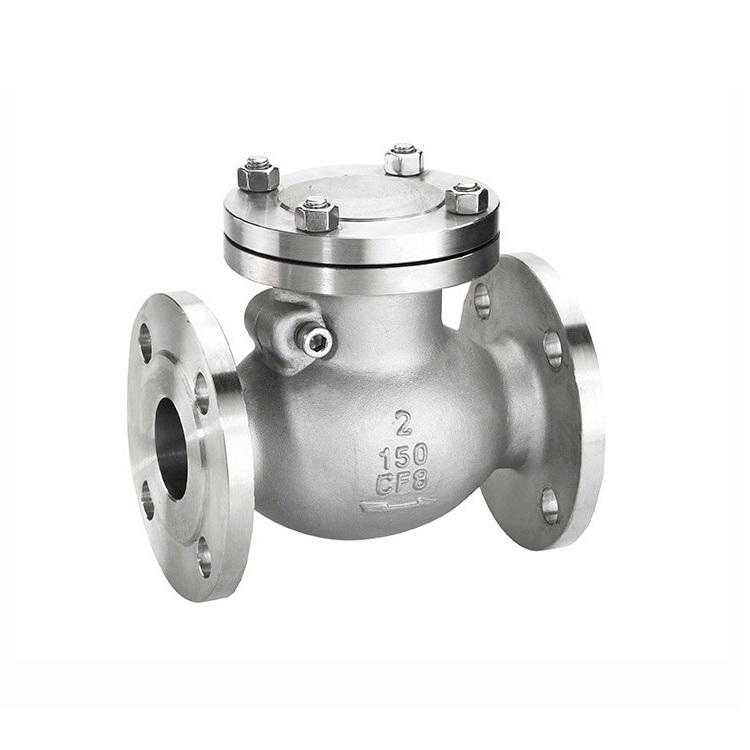

The Stainless Steel Flanged Swing Check Valve is a unidirectional valve designed to allow flow in one direction and automatically prevent reverse flow. The disc is hinged at the top of the body. Forward flow pushes the disc open; when forward flow stops or reverses, gravity and backpressure return the disc to the closed position against the seat. Because the disc swings completely out of the flow path when open, this valve offers the lowest pressure drop of any check valve type. The body is cast from CF8 (SS304) or CF8M (SS316) stainless steel for corrosion resistance. The seat ring is threaded or bolted into the body and is renewable. For applications prone to water hammer, an external lever and weight can be added to control disc closing speed.
Why Choose Us / Advantage
Full Flow Area: No flow restriction when open — ideal for pump discharge.
Replaceable Seat: No need to replace the entire valve when seat wears — just change the seat ring.
Stainless Steel Hinge Pin: SS304 or SS316 hinge pin resists galling and corrosion.
Lever & Weight Included: Upon request — no extra charge for standard sizes.
100% Reverse Leak Tested: Each valve tested for backflow sealing.
Technical Data
★ Specification CF8 (SS304) CF8M (SS316)
★ Body Material Stainless Steel CF8 Stainless Steel CF8M
★ Disc CF8 + SS304 CF8M + SS316
★ Seat Renewable (Stellite or PTFE optional) Renewable
★ Hinge Pin SS304 SS316
★ Pressure Class 150 / Class 300 Class 150 / Class 300
★ Size Range DN50 – DN600 DN50 – DN600
★ Connection Flanged (ANSI / EN) Flanged (ANSI / EN)
Applications
● Pump discharge in chemical processing plants
● Seawater intake and cooling lines (SS316 recommended)
● Pharmaceutical water distribution systems
● Food processing sanitary lines
● Corrosive waste collection headers
