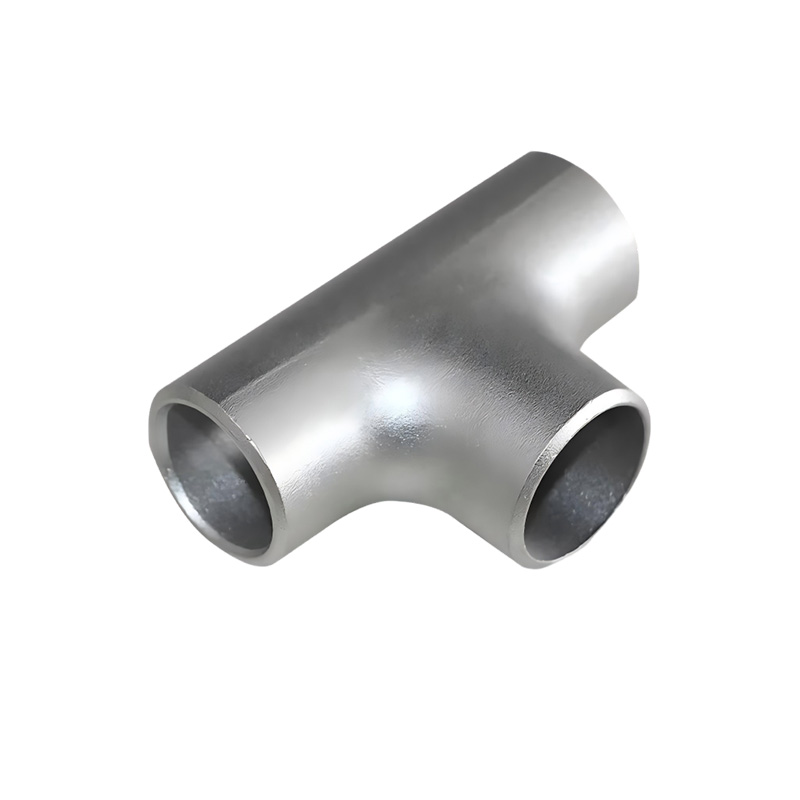

The Stainless Steel Equal Tee is a three-port butt weld fitting used to create a branch connection where the branch pipe is the same size as the main pipe. The fitting is manufactured from ASTM A403 stainless steel — WP304L or WP316L. Low carbon “L” grades are standard for welded systems to prevent intergranular corrosion (sensitization) in the heat-affected zone of the weld. The intersection where the branch meets the run is reinforced with extra wall thickness. The internal surface is smooth and continuous. For pharmaceutical and food applications, an electropolished internal finish (Ra ≤ 0.4μm) eliminates crevices where bacteria could grow. All three ends are beveled per ASME B16.25 for full penetration butt welds.
Why Choose Us / Advantage
Low Carbon Standard: 304L and 316L — no upcharge for weldable grade.
Full Penetration Weld Design: Beveled ends match pipe bevel.
100% PMI Tested: Every fitting grade verified.
Sanitary Finish Option: Electropolished to Ra 0.4μm for CIP/SIP systems.
Quick Lead Time: 1/2″ – 12″ from stock.
Technical Data
★ Specification SS304L SS316L
★ Material ASTM A403 WP304L ASTM A403 WP316L
★ Type Equal Tee (all ports same size) Equal Tee
★ Connection Butt weld (beveled all ends) Butt weld
★ Schedule Sch10S, Sch40S, Sch80S Sch10S, Sch40S, Sch80S
★ Size Range 1/2″ – 24″ 1/2″ – 24″
★ Standard ASME B16.9 / MSS SP-43 ASME B16.9
★ Branch Reinforcement Integral (standard) Integral
★ Finish Pickled & passivated Pickled & passivated
Applications
● Pharmaceutical water distribution loops (WFI, PW)
● Chemical processing header to branch of same size
● Food and beverage CIP supply headers
● Biotech process piping
● Marine fire main ring systems (SS316)
