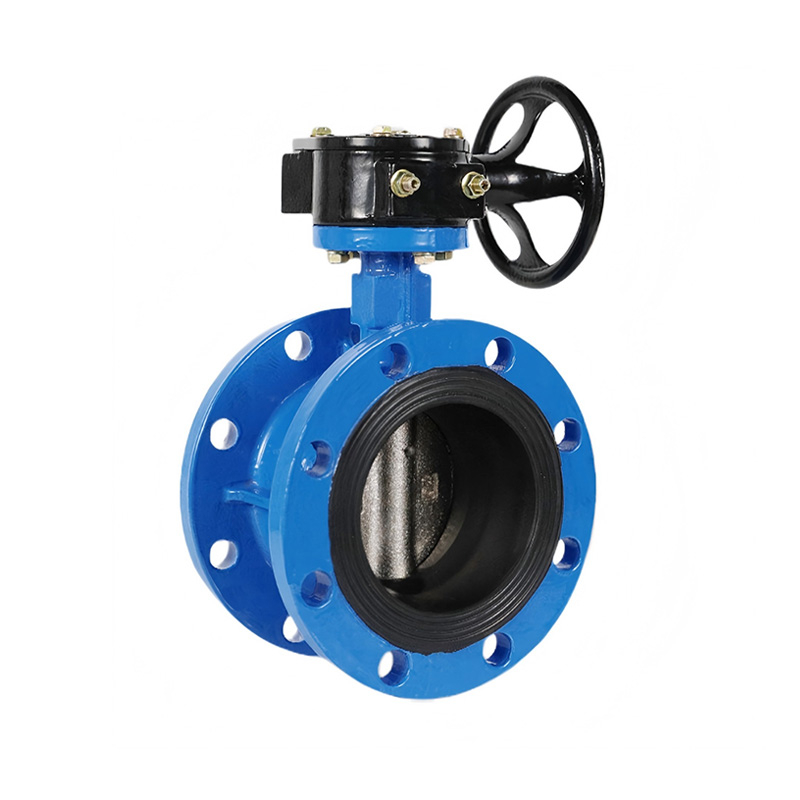

The Flanged Butterfly Valve features integral flanges cast as part of the body, allowing it to be bolted directly between pipeline flanges (unlike wafer type which relies on longer bolts). This design provides a more rigid connection and is preferred for higher pressure applications, larger diameters, or systems with significant pipe stress. The body is fully rubber-lined, meaning all wetted surfaces are covered with EPDM, NBR, or other elastomers for maximum corrosion protection. The disc (available in ductile iron nickel-plated or stainless steel) rotates 90° to open or close. The top flange is drilled to ISO 5211 standards, allowing direct mounting of electric or pneumatic actuators.
Why Choose Us / Advantage
Actuator-Ready: ISO 5211 top flange with square drive connection.
Replaceable Seat: Seat can be replaced without removing the valve from the pipeline.
Certified for Drinking Water: EPDM lining meets WRAS and ACS requirements.
100% Pressure Tested: Shell test 1.5x PN, seat test 1.1x PN.
Custom Flanges: Available with PN25, ANSI Class 150/300, or JIS 10K.
Technical Data
★ Connection Flanged (EN 1092-2 / ANSI B16.1)
★ Body Material Ductile Iron QT500-7
★ Lining EPDM / NBR / PTFE
★ Disc Material DI / SS304 / SS316 / Aluminum Bronze
★ Pressure PN10 / PN16 / Class 150 / JIS 10K
★ Size DN40 – DN1400
★ Actuator Mounting ISO 5211 F07/F10/F12/F14
