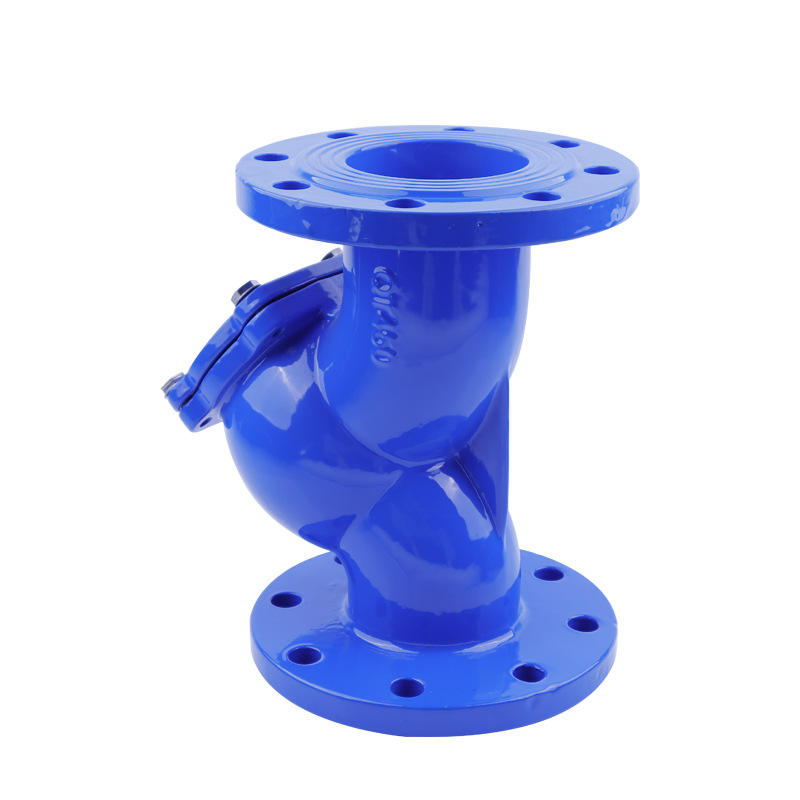

The Ductile Iron Y-Strainer is installed upstream of pumps, valves, meters, and other sensitive equipment to remove solid particles (sand, rust, weld slag, scale) from the fluid. The body is cast in the shape of a “Y” — the straight-through leg allows normal flow, while the angled leg houses the removable stainless steel strainer screen. Debris collects inside the screen pocket. To clean the strainer, the technician simply removes the bolted cover (or blows down the drain valve) and pulls out the screen for rinsing. The Y-Strainer offers low pressure drop because flow passes straight through the screen (perpendicular to the mesh, not parallel). For dirty media, a blow-down port can be added to purge debris without interrupting pipeline operation.
Why Choose Us / Advantage
Multiple Mesh Sizes: We stock 20, 40, 60, 80, 100, and 200 mesh screens.
Magnetic Option: Magnetic insert available for capturing ferrous particles.
ASME / EN Flanges: Customizable to any flange drilling pattern.
Screen Thickness: Heavy-duty 1.5mm perforated stainless steel for abrasive media.
Hydrostatic Tested: Each strainer tested at 1.5x rated pressure.
Technical Data
★ Type Y-Strainer (Flanged)
★ Body Ductile Iron QT450 (epoxy coated)
★ Screen SS304 / SS316 (perforated or mesh)
★ Cover Gasket EPDM / NBR / PTFE / Graphite
★ Mesh Range 0.2mm – 5mm openings
★ Pressure PN16 / PN25 / Class 150
★ Size Range DN15 – DN600
★ Drain Port Optional 1/2″ or 3/4″ ball valve
Applications
● Upstream of pumps, control valves, and flow meters
● Water treatment plant intake
● Cooling water systems
● Fire sprinkler system strainers
● Fuel and oil filtration
