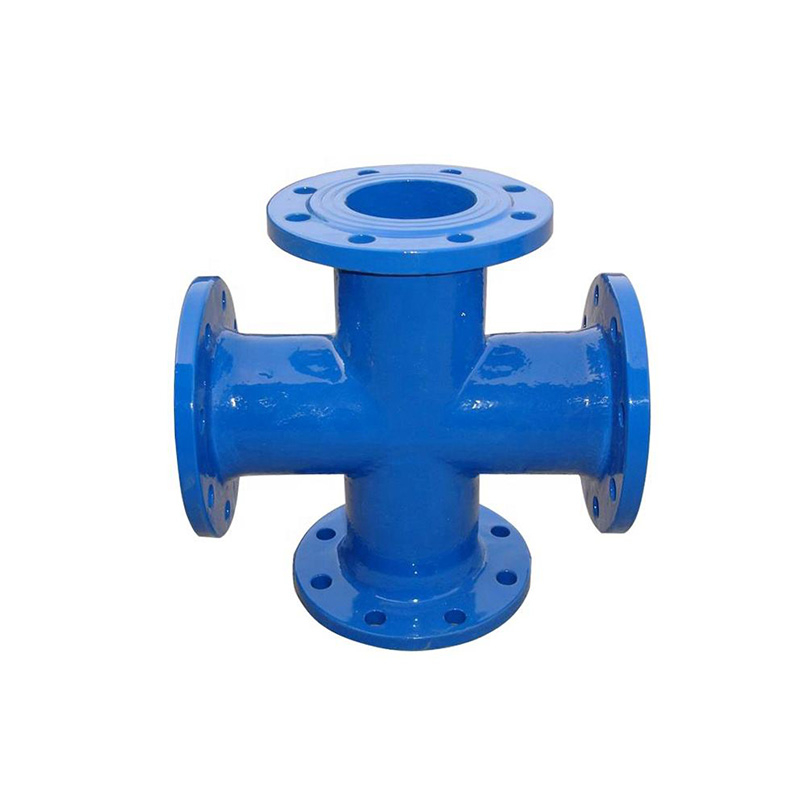

The Ductile Iron Flanged Cross (also called a 4-way cross or flanged cross tee) is a four-port fitting used where a pipeline needs to branch in two perpendicular directions from the same point — essentially a tee with an additional branch on the opposite side. The fitting has four integral flanges: two on the main run (straight through), and two on the perpendicular branches (opposite each other). The cross is most commonly used in fire ring mains, pump headers, and plant utility loops. The body is cast from ductile iron QT450-10 with reinforced thickness at all branch intersections to handle stress concentration. The internal and external surfaces are coated with fusion bonded epoxy (minimum 250 microns). Flanges can be drilled to ANSI, EN, BS, JIS, or custom bolt patterns.
Why Choose Us / Advantage
Saves Space: One cross replaces two tees and a pipe spool — reduces fittings and installation time.
Balanced Flow: Symmetrical design provides equal flow to both branches.
High Strength Casting: Reinforced ribbing at intersections prevents cracking.
Full Certifications: Material certificates and hydro test reports included.
Custom Drilling: We match any flange standard.
Technical Data
★ Material Ductile Iron QT450-10 / GJS-500-7
★ Ports 4 flanged connections
★ Configuration Equal cross (all ports same size)
★ Coating Fusion bonded epoxy (250μm)
★ Pressure PN10 / PN16 / Class 150
★ Size Range DN50 – DN600
★ Flange Drilling ANSI / EN / BS / JIS / Custom
★ Gasket Face Raised face or flat face
Applications
● Fire ring mains (branch to two hydrants or sprinkler risers)
● Pump header manifolds (multiple pump connections)
● Water treatment plant distribution blocks
● Industrial cooling water loops
● Compressed air distribution headers
