Simple Rubber Flap Design: No springs, no hinges — just a flexible rubber flap.
Silent Operation: Rubber flap eliminates metal-to-metal slamming noise.
Corrosion Proof: All wetted parts are rubber or epoxy-coated ductile iron.
Ideal for Dirty Media: Handles sewage, sludge, and water with solids.
Low Cracking Pressure: Opens with minimal forward flow.
Maintenance Free: No moving parts to lubricate or replace.

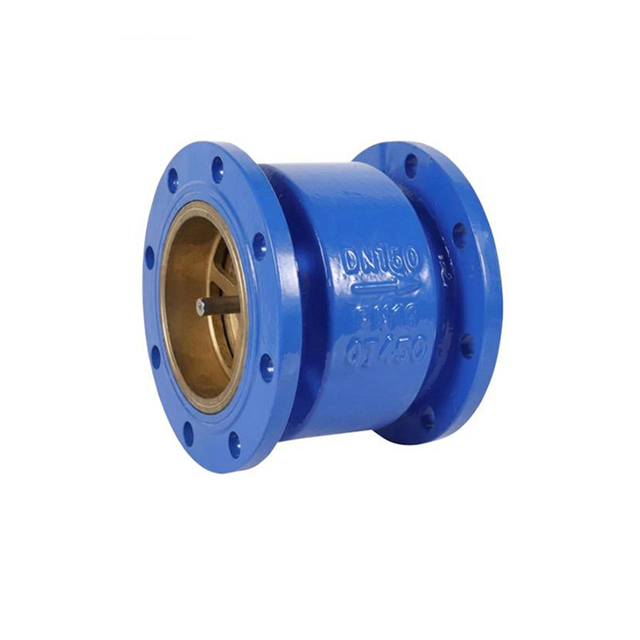

Spring-Loaded Disc: Disc closes before reverse flow can develop — eliminates water hammer.
Silent Operation: No slamming noise — perfect for residential and hospital buildings.
Short Face-to-Face: Wafer or flanged design fits tight spaces.
Quick Response: Stainless steel spring ensures millisecond closure.
Low Pressure Drop: Streamlined body design.
Vertical or Horizontal: Works in any orientation.

Flanged Swing Design: Traditional robust construction for large diameter pipelines.
Low Pressure Drop: Disc swings fully open — minimal flow restriction.
Lever & Weight Option: External counterweight reduces slamming and allows adjustable closing speed.
Renewable Seat Ring: Seat can be replaced without replacing the entire valve.
Horizontal or Vertical (Upward Flow) Installation: Flexible mounting.
Class 125/150 or PN16: Meets major international flange standards.

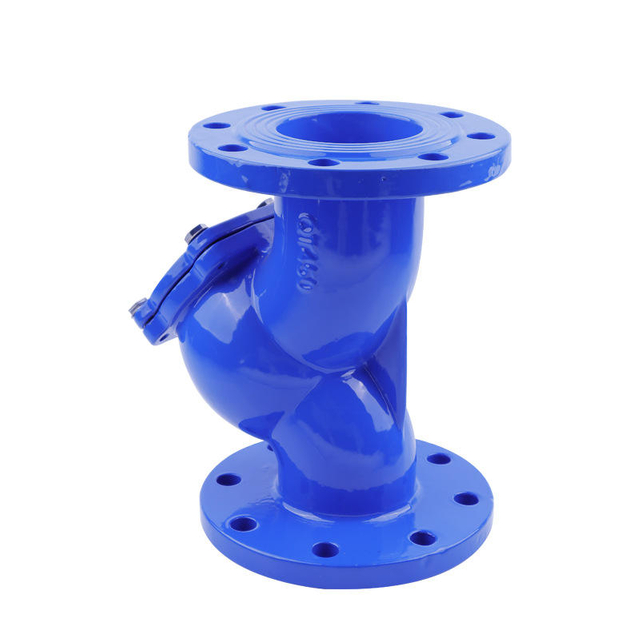

Y-Shape Body: Allows easy access to strainer element without removing the valve.
Large Debris Capacity: Blow-down port available for continuous service.
Perforated or Wire Mesh: Choose filtration degree (0.5mm – 5mm openings).
Removable Screen: Stainless steel 304 or 316 screen is cleanable and reusable.
Pressure Rated: PN16/PN25 or Class 150/300.
Blow-Down Valve Option: Purge accumulated debris without stopping flow.

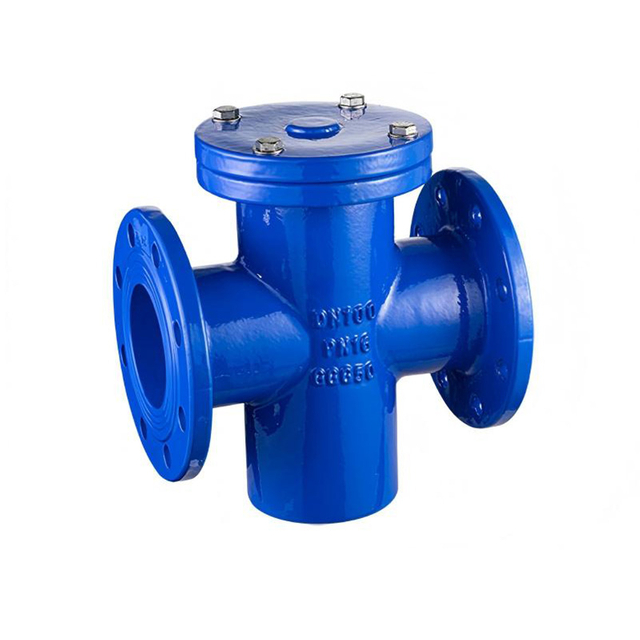

Basket / Tee Type: Larger debris holding capacity than Y-strainers.
Easy Cleaning: Removable basket lifts out from top cover.
Low Pressure Drop: Large open area of basket reduces flow resistance.
Perforated or Mesh Basket: Options for coarse or fine straining.
Blow-Down Port Option: Drain debris without disassembly.
Ideal for Pump Suction: Protects pumps from large debris (rags, sticks, stones).

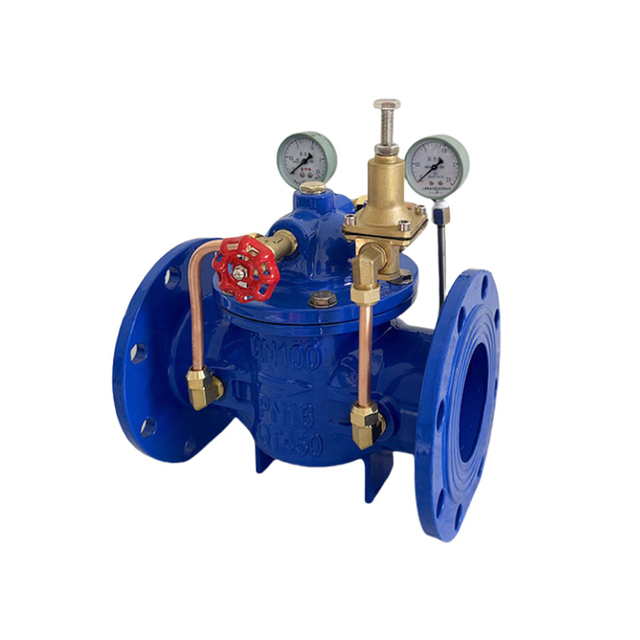

Pilot-Operated Design: Precise control of pressure, flow, or level.
Globe Pattern Body: Excellent throttling characteristics.
Available Functions: Pressure Reducing (PRV), Sustaining (PSV), Flow Control (FCV), Altitude (ALV).
Hydraulic or Electric Pilot: No external power needed for hydraulic pilots.
Diaphragm Actuated: Smooth, stable regulation.
Bolt-on Seat: Easy maintenance.

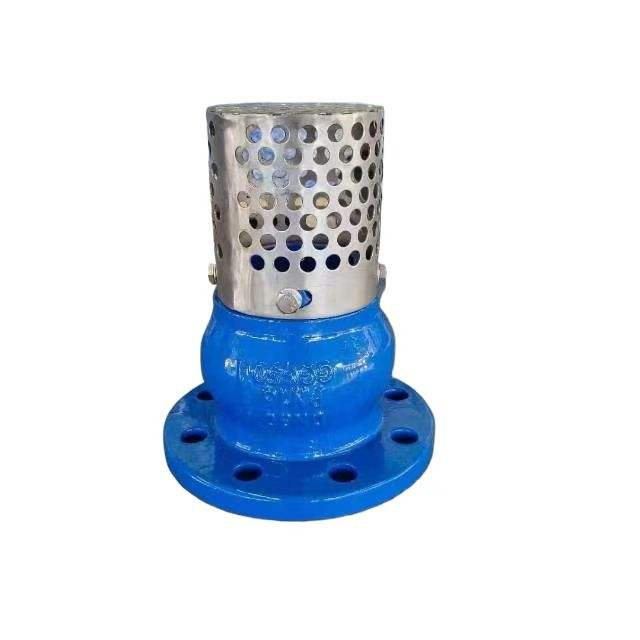

Strainer + Check Valve in One: Protects pump and prevents backflow.
Keeps Pump Primed: Holds water column in suction pipe when pump stops.
Large Free Area: Low pressure drop for easy pump suction lift.
Hinged Disc or Poppet: Reliable sealing against reverse flow.
Stainless Steel Strainer Screen: Prevents debris from entering pump.
Flanged or Threaded: Available for vertical installation at pipe bottom.

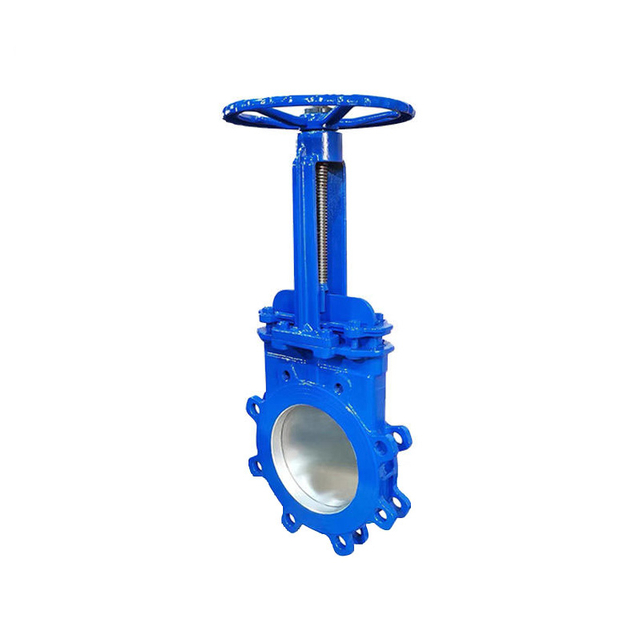

Sharp Gate Edge: Cuts through thick slurries, pastes, and fibrous media.
Unidirectional or Bi-Directional: Options for different installation needs.
Flanged or Wafer / Lug: Multiple body style options.
Thick Rubber Seat: Replaces easily when worn.
Ideal for Mining & Pulp: Handles high solids content (up to 80%).
Manual or Pneumatic/Electric Actuation: Available with handwheel, lever, or cylinder.

Single Orifice Design: Small continuous air release during pressurized operation.
Compact Size: Smaller and lighter than double orifice type — fits tight spaces.
Suitable for Pumped Lines: Releases air entrained by pumps.
Prevents Air Binding: Eliminates air pockets that cause flow reduction.
Threaded Connection: Easy to install on small branch lines.
Automatic Float Operation: Maintenance free.
