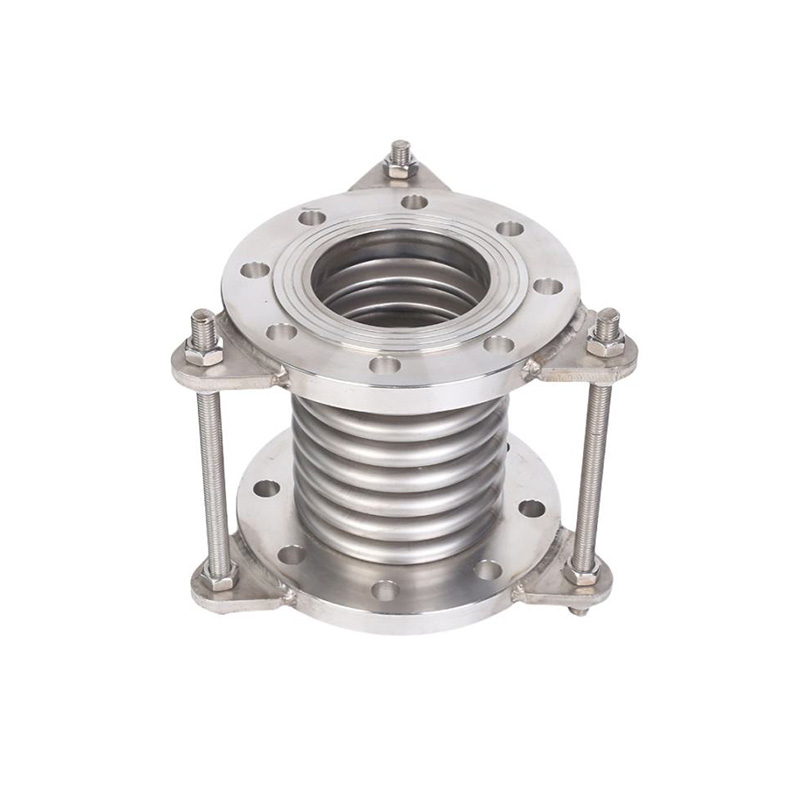

The Stainless Steel Bellows Expansion Compensator (also called an expansion joint or bellows compensator) is a flexible piping component designed to absorb thermal expansion, vibration, and pipe movement in industrial piping systems. The core component is a formed stainless steel bellows — a series of convolutions that can compress, extend, or flex. The bellows is manufactured from SS304 or SS316L stainless steel, with single or multi-ply construction. Multi-ply bellows offer higher pressure capability and provide redundancy (if one ply fails, others contain the pressure). The compensator can absorb axial movement (compression/extension), angular movement (bending at an angle), and lateral movement (offset). End connections are typically flanged (for easy installation) or butt weld ends (for permanent, leak-proof connections). The compensator is often fitted with internal liners to protect the bellows from erosion and external covers to protect against mechanical damage.
Why Choose Us / Advantage
Custom Design: We calculate movement requirements and design bellows to your pipe diameter, pressure, temperature, and movement needs.
100% Pressure Tested: Each compensator hydrostatically tested to 1.5x rated pressure.
Material Certificates: EN 10204 3.1 for bellows, flanges, and pipe ends.
Third Party Inspection Welcome: SGS, BV, or TUV inspection available.
Quick Lead Time: Standard sizes (DN50-DN600) in 20-25 days.
Technical Data
★ Specification Single Ply Multi-Ply
★ Bellows Material SS304 / SS316L SS304 / SS316L
★ Number of Plies 1 2 or 3
★ Pressure Rating PN6 – PN16 PN16 – PN40
★ Temperature Range -20°C to +450°C -20°C to +450°C
★ Size Range DN25 – DN2000 (1″ – 80″) DN25 – DN1200
★ Connection Flanged / Weld end Flanged / Weld end
★ Movement Type Axial, Angular, Lateral Axial, Angular, Lateral
★ Standard EJMA / EN 14917 EJMA / EN 14917
Applications
● Steam pipeline thermal expansion absorption
● Pump discharge and suction (reduces pump nozzle stress)
● Heat exchanger piping (compensates for differential expansion)
● Large diameter chilled water lines (thermal contraction/expansion)
● Vibration isolation in reciprocating compressor piping
● Building movement joints where pipes cross seismic gaps
